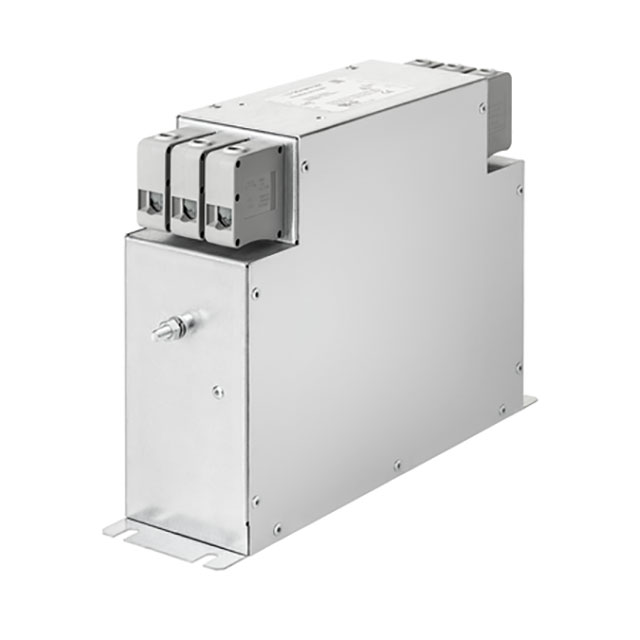

FN3288HV-80-34-C36-R65

FN3288HV-80-34-C36-R65

Part Number	FN3288HV-80-34-C36-R65
Manufacturer	Schaffner EMC, Inc.
Other Part Numbers	817-2818-ND 817-2818 818066
Description	LINE FILTER 80A CHASSIS MOUNT
Detailed Description	Three Phase (Delta) EMC/EMI Line Filter 80 A DC ~ 60Hz Two Stage Terminal Block
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Power Line Filter Modules
Manufacturer		Schaffner EMC, Inc.
Series		FN 3288
Packaging		Box
Part Status		Active
Filter Type		Three Phase (Delta)
Mounting Type		Chassis Mount
Configuration		Two Stage
Operating Temperature		-40°C ~ 100°C
Termination Style		Terminal Block
Applications		Inverters, Power Drive Systems
Frequency - Operating		DC ~ 60Hz
Voltage - Rated AC (Phase to Ground/Neutral)		440 V
Voltage - Rated AC (Phase to Phase)		760 V
Current		80 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FN3288HV-80-34-C36-R65
Datasheets		RoHS Declaration of Conformity
Datasheets		Schaffner REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3

Can ship immediately.
