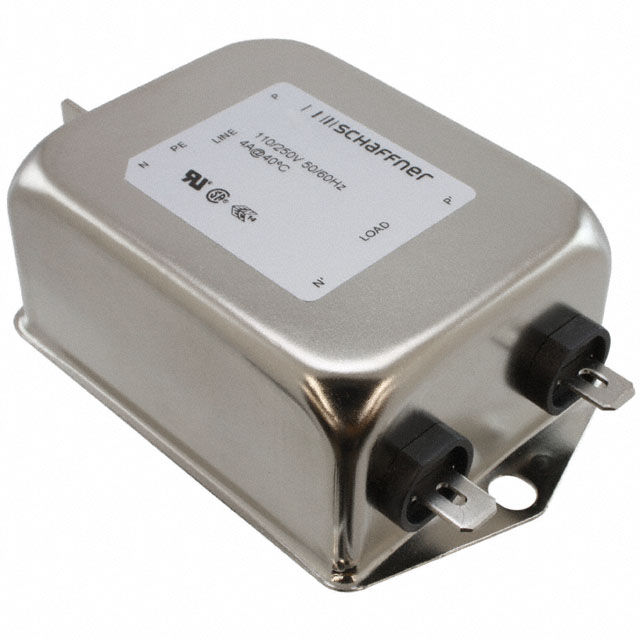

FN2090A-10-06

FN2090A-10-06

Part Number	FN2090A-10-06
Manufacturer	Schaffner EMC, Inc.
Other Part Numbers	817-2401-ND FN2090A-10-06-ND 299-249 817-2401 802494
Description	LINE FILTER 110V/250VAC 10A CHAS
Detailed Description	Single Phase EMC/EMI Line Filter 10 A 110V, 250VAC DC ~ 400Hz Two Stage Quick Connect
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Power Line Filter Modules
Manufacturer		Schaffner EMC, Inc.
Series		FN 2090
Packaging		Tray
Part Status		Active
Inductance		8mH
Filter Type		Single Phase
Mounting Type		Chassis Mount
Configuration		Two Stage
Operating Temperature		-20°C ~ 100°C
Termination Style		Quick Connect
Applications		Safety
Approval Agency		CE, CSA, ENEC, UR
Voltage - Rated AC		110V, 250V
Frequency - Operating		DC ~ 400Hz
Current		10 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FN2090A-10-06
Datasheets		FN2090, FN2092 Series CE Declaration
Datasheets		RoHS Declaration of Conformity
Datasheets		Schaffner REACH
Datasheets		Mult Devs - packing material chg 29/SEP/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
