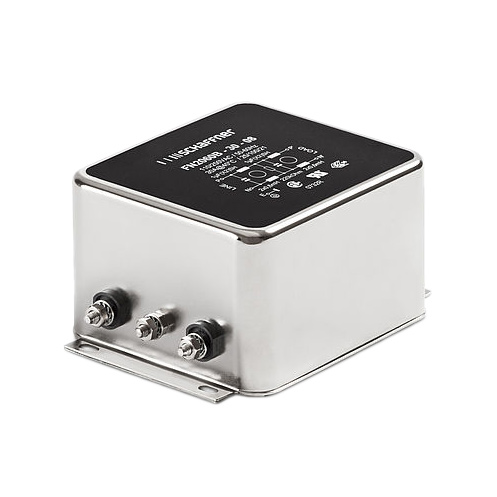

FN2060B-20-06

FN2060B-20-06

Part Number	FN2060B-20-06
Manufacturer	Schaffner EMC, Inc.
Other Part Numbers	817-2389-ND 800970 294-746 FN2060B-20-06-ND 817-2389
Description	LINE FILTER 250VAC 20A CHASSIS
Detailed Description	Single Phase EMC/EMI Line Filter 20 A 250VAC DC ~ 400Hz Two Stage Quick Connect
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Power Line Filter Modules
Manufacturer		Schaffner EMC, Inc.
Series		FN 2060
Packaging		Tray
Part Status		Active
Inductance		600µH
Filter Type		Single Phase
Mounting Type		Chassis Mount
Configuration		Two Stage
Operating Temperature		-25°C ~ 100°C
Termination Style		Quick Connect
Applications		General Purpose
Approval Agency		CE, CSA, ENEC, UR
Voltage - Rated AC		250V
Frequency - Operating		DC ~ 400Hz
Current		20 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FN2060B-20-06
Datasheets		RoHS Declaration of Conformity
Datasheets		Schaffner REACH
Datasheets		Mult Devs - packing material chg 29/SEP/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
