FMG11AT148

Part Number
FMG11AT148
Manufacturer ROHM Semiconductor
Other Part Numbers
FMG11AT148TR-ND
FMG11AT148CT-ND
FMG11AT148DKR-ND
FMG11AT148-ND
FMG11AT148TR
FMG11AT148CT
FMG11AT148DKR
Description TRANS 2NPN PREBIAS 0.3W SMT5
Detailed Description Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 250MHz 300mW Surface Mount SMT5
Datasheet Datasheet

Product Attributes

Category
Manufacturer ROHM Semiconductor
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Not For New Designs

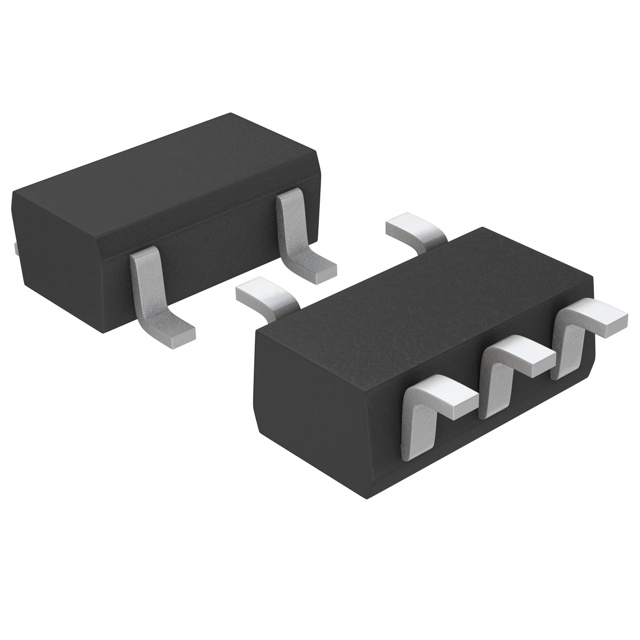

Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Transistor Type 2 NPN - Pre-Biased (Dual)
Power - Max 300mW
Current - Collector (Ic) (Max) 100mA
Voltage - Collector Emitter Breakdown (Max) 50V
Vce Saturation (Max) @ Ib, Ic 300mV @ 250µA, 5mA
Current - Collector Cutoff (Max) 500nA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 10mA, 5V
Frequency - Transition 250MHz
Resistor - Base (R1) 2.2kOhms
Resistor - Emitter Base (R2) 47kOhms
Supplier Device Package SMT5

Documents & Media

RESOURCE TYPE LINK
Datasheets FMG11AT148
Datasheets SMT-5 Package Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.21.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3190

Can ship immediately.
Not recommended for new design, minimums may apply.
