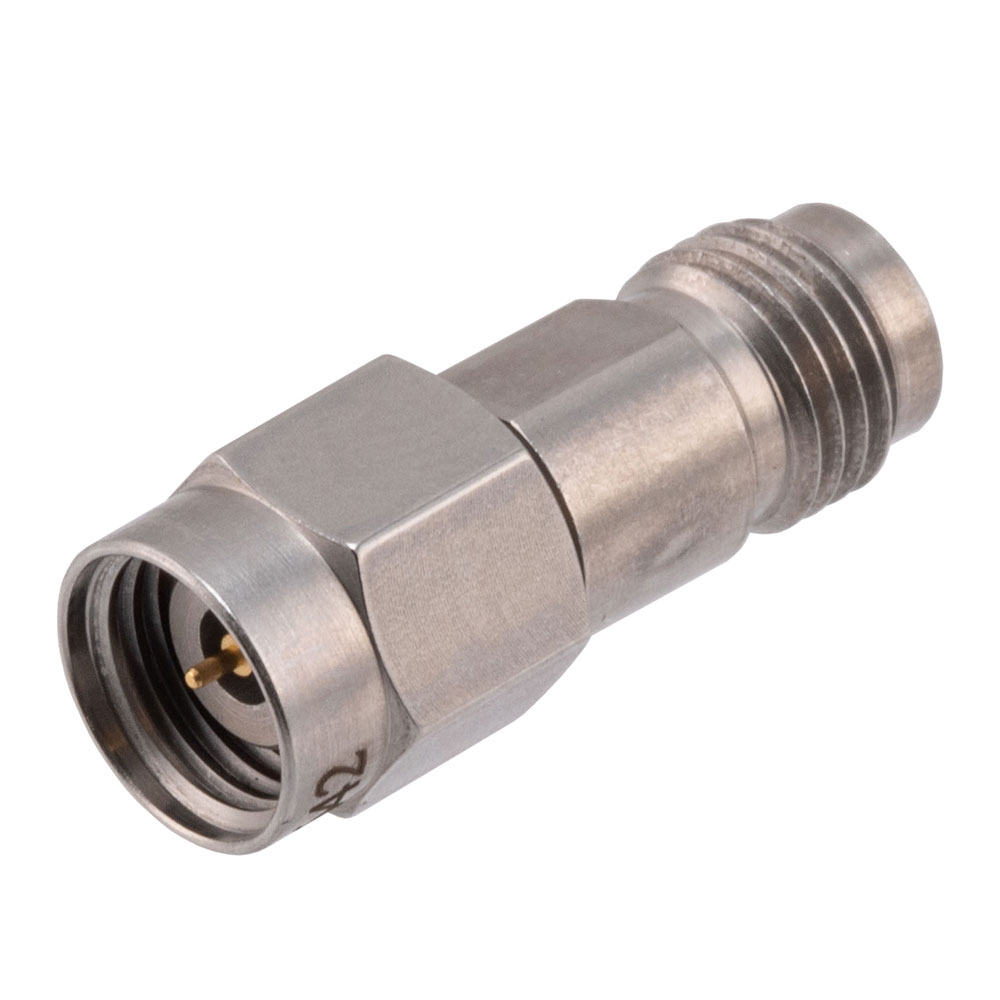

FMAD1642 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	FMAD1642
Manufacturer	Fairview Microwave
Other Part Numbers	5328-FMAD1642-ND 5328-FMAD1642
Description	ADAPT PLUG-JACK 2.4MM SS 1.3 VSW
Detailed Description	Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Fairview Microwave
Series
Packaging		Bag
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		2.4mm (APC-2.4, OS-50) Jack, Female Socket
Convert To (Adapter End)		2.4mm (APC-2.4, OS-50) Plug, Male Pin
Operating Temperature		-50°C ~ 170°C
Insertion Loss		0.29dB
Fastening Type		Threaded, Threaded
Dielectric Material		Polyetherimide (PEI)
Adapter Series		2.4mm to 2.4mm
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Same Series
Body Material		Stainless Steel
Center Contact Material		Beryllium Copper
Body Finish		Passivated
Center Contact Plating		Gold
Frequency - Max		50 GHz

RESOURCE TYPE		LINK
Datasheets		FMAD1642

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
