FJV3113RMTF

FJV3113RMTF

Part Number	FJV3113RMTF
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FJV3113RMTF-ND ONSFSCFJV3113RMTF 2156-FJV3113RMTF
Description	TRANS PREBIAS NPN 50V SOT23-3
Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 250 MHz 200 mW Surface Mount SOT-23-3 (TO-236)

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single, Pre-Biased Bipolar Transistors
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active

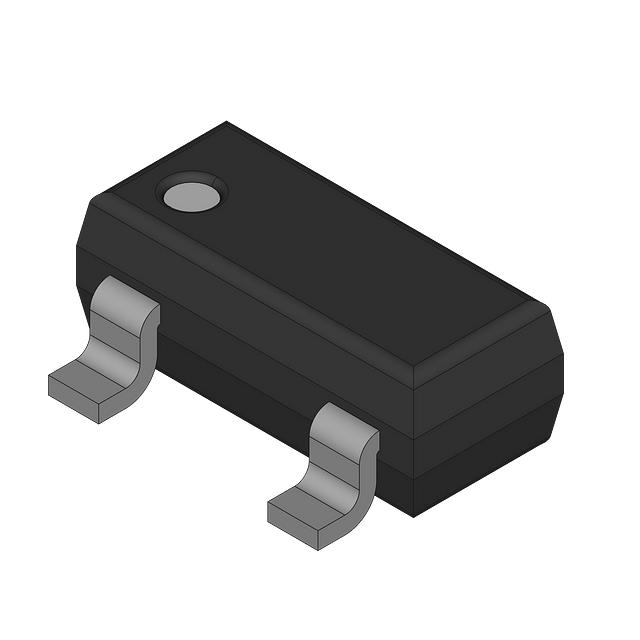

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Transistor Type		NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic		300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)		100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		68 @ 5mA, 5V
Supplier Device Package		SOT-23-3 (TO-236)
Current - Collector (Ic) (Max)		100 mA
Voltage - Collector Emitter Breakdown (Max)		50 V
Power - Max		200 mW
Frequency - Transition		250 MHz
Resistor - Base (R1)		2.2 kOhms
Resistor - Emitter Base (R2)		47 kOhms

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
