FIRCH-4

Part Number
FIRCH-4
Manufacturer Triad Magnetics
Other Part Numbers
237-1161-ND
237-1161
237-1161-NDR
10593
Q4990005
Description FIXED IND 5UH 6.8A 14.1 MOHM TH

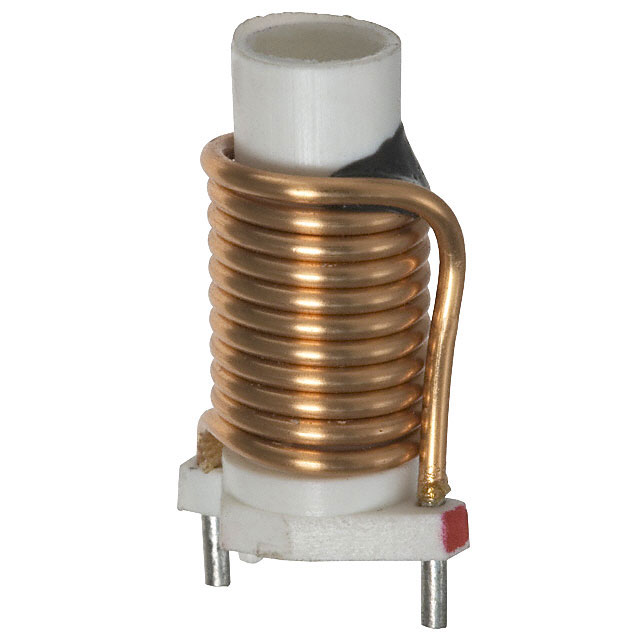

Detailed Description 5 µH Unshielded Drum Core, Wirewound Inductor 6.8 A 14.1mOhm Max Radial, Vertical Cylinder (Open)
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Triad Magnetics
Series
FIRCH
Packaging
Bulk
Part Status Active
Tolerance ±15%
Package / Case Radial, Vertical Cylinder (Open)
Size / Dimension 0.630" L x 0.465" W (16.00mm x 11.81mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 14.1mOhm Max
Material - Core Ferrite
Inductance Frequency - Test 10 kHz
Height - Seated (Max) 1.050" (26.67mm)
Inductance 5 µH
Current Rating (Amps) 6.8 A

Documents & Media

RESOURCE TYPE LINK
Datasheets FIRCH-4
Datasheets Standard Part Warranty Terms
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
