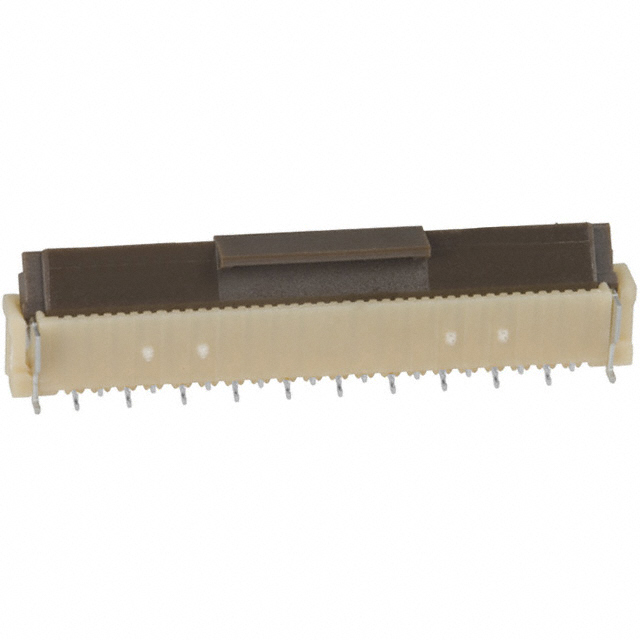

FH12-20S-0.5SV _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	FH12-20S-0.5SV
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	HFL20TR-ND HFL20CT-ND HFL20TR *FH12-20S-0.5SV FH12-20S-0.5SVCT FH1220S05SV HFL20CT
Description	CONN FFC VERT 20POS 0.5MM SMD
Detailed Description	20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Hirose Electric Co., Ltd.
Series		FH12
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete
Features		Solder Retention, Zero Insertion Force (ZIF)
Contact Finish		Tin-Lead
Voltage Rating		50V
Current Rating (Amps)		0.5A
Mounting Type		Surface Mount
Number of Positions		20
Pitch		0.020" (0.50mm)
Operating Temperature		-40°C ~ 85°C
Termination		Solder
Height Above Board		0.142" (3.60mm)
Locking Feature		Flip Lock
Material Flammability Rating		UL94 V-0
Actuator Material		Polyphenylene Sulfide (PPS)
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.30mm
Housing Material		Polyamide (PA), Nylon
Cable End Type		Straight
Housing Color		Beige
Actuator Color		Brown
Mating Cycles		20
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Vertical - 1 Sided

RESOURCE TYPE		LINK
Datasheets		FH12-20S-0.5SV

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
