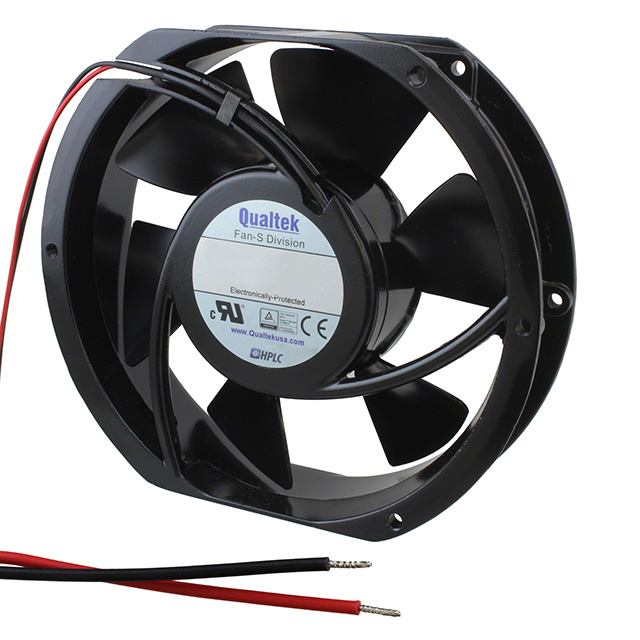

FDD1-17238DBMW49-L _ DC Brushless Fans (BLDC)_Fans_Fans, Blowers, Thermal Management

Part Number	FDD1-17238DBMW49-L
Manufacturer	Qualtek Electronics Corp.
Other Part Numbers	FDD1-17238DBMW49-L-ND
Description	FAN AXIAL 172X38.5MM 24VDC WIRE
Detailed Description	Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 151mm H Ball 275.0 CFM (7.70m³/min) 3 Wire Leads

Category		Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC)
Manufacturer		Qualtek Electronics Corp.
Series		HPLC, FDD1-17238
Packaging		Bulk
Part Status		Active
Features		PWM Control
Voltage - Rated		24VDC
Size / Dimension		Rectangular/Rounded - 172mm L x 151mm H
Bearing Type		Ball
Current Rating (Amps)		1.08A
RPM		3600 RPM
Air Flow		275.0 CFM (7.70m³/min)
Width		38.50mm
Weight		1.9 lbs (861.8 g)
Operating Temperature		-4 ~ 158°F (-20 ~ 70°C)
Termination		3 Wire Leads
Approval Agency		CE, cURus, TUV
Ingress Protection		IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.		100000 Hrs @ 25°C
Fan Type		Tubeaxial
Noise		60.0dB(A)
Static Pressure		0.909 in H2O (226.5 Pa)
Material - Frame		Aluminum
Material - Blade		Steel
Power (Watts)		25.9 W

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8414.59.6590
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
