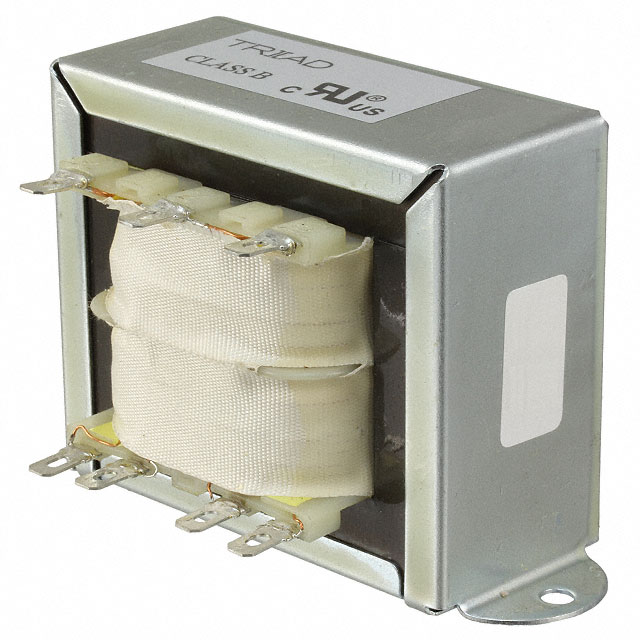

FD8-48

Part Number
FD8-48
Manufacturer Triad Magnetics
Other Part Numbers
237-1772-ND
237-1772
Description PWR XFMR LAMINATED 100VA CHAS MT
Manufacturer Standard Lead Time 23 weeks

Product Attributes

Category
Manufacturer Triad Magnetics
Series
Quick Pack
Packaging
Box
Part Status Active
Size / Dimension 102.39mm L x 57.15mm W
Mounting Type Chassis Mount
Type Laminated Core
Weight 2.8 lbs (1.3 kg)
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Primary Winding(s) Dual
Secondary Winding(s) Single
Power - Max 100VA
Voltage - Isolation 2500VAC
Current - Output (Max) 2A
Voltage - Primary 115V, 230V
Height - Seated (Max) 65.07mm
Voltage - Secondary (Full Load) 48V
Center Tap Yes

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4065
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 13

Can ship immediately.
