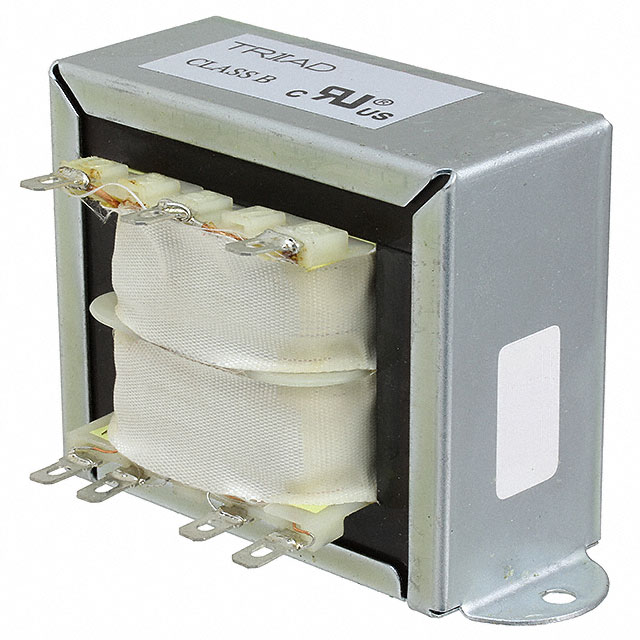

FD8-36

FD8-36

Part Number	FD8-36
Manufacturer	Triad Magnetics
Other Part Numbers	237-1771-ND 237-1771
Description	PWR XFMR LAMINATED 100VA CHAS MT
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Quick Pack
Packaging		Box
Part Status		Active
Size / Dimension		102.39mm L x 57.15mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		2.8 lbs (1.3 kg)
Termination Style		Solder, Quick Connect - 0.187" (4.7mm)
Primary Winding(s)		Dual
Secondary Winding(s)		Single
Power - Max		100VA
Voltage - Isolation		2500VAC
Current - Output (Max)		2.8A
Voltage - Primary		115V, 230V
Height - Seated (Max)		65.07mm
Voltage - Secondary (Full Load)		36V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
