FAN54120MP420X

Part Number
FAN54120MP420X
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
488-FAN54120MP420XTR-ND
488-FAN54120MP420XCT-ND
488-FAN54120MP420XDKR-ND
488-FAN54120MP420XCT
488-FAN54120MP420XDKR
488-FAN54120MP420XTR
Description IC BATT CHG LI-ION 1CELL 6DFN
Detailed Description Charger IC Lithium Ion 6-DFN (2x2)
Manufacturer Standard Lead Time 29 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

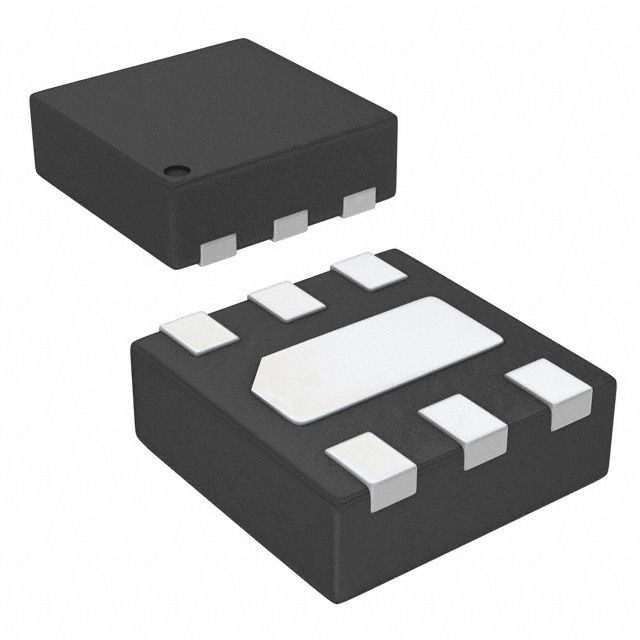

Package / Case 6-VDFN Exposed Pad
Number of Cells 1
Mounting Type Surface Mount
Interface USB
Operating Temperature -30°C ~ 85°C (TA)
Battery Chemistry Lithium Ion
Supplier Device Package 6-DFN (2x2)
Charge Current - Max 500mA
Programmable Features Current
Fault Protection Over Current, Over Voltage, Short Circuit
Voltage - Supply (Max) 6V
Battery Pack Voltage 2.5V ~ 4.5V
Current - Charging Constant - Programmable

Documents & Media

RESOURCE TYPE LINK
Datasheets FAN54120MP420X
Datasheets onsemi RoHS
Datasheets onsemi REACH
Datasheets Reactivation 05/Nov/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 7933

Can ship immediately.
