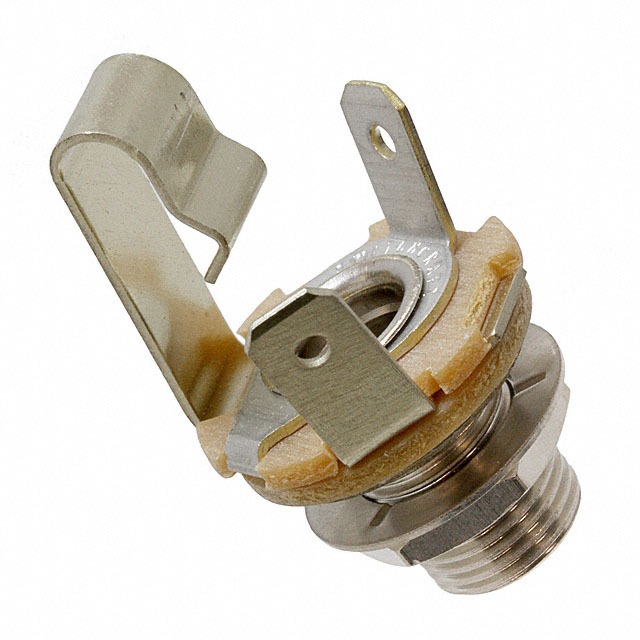

FAL11 _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	FAL11
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC1847-ND FAL11-ND SC1847
Description	CONN JACK MONO 6.35MM PNL MNT
Detailed Description	6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		LITTEL-JAX®
Packaging		Bulk
Part Status		Active
Features		Mounting Hardware, Thread Lock
Voltage - Rated		25VDC
Connector Type		Phone Jack
Gender		Female
Mounting Type		Panel Mount
Shielding		Unshielded
Thread Size		3/8"-32
Operating Temperature		-20°C ~ 65°C
Panel Hole Size		0.375" (9.52mm)
Number of Positions/Contacts		2 Conductors, 2 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Mono
Termination		Solder Eyelet(s)
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Copper Alloy
Body Material		Copper Alloy
Body Color		Silver
Contact Material - Plating		Nickel
Actual Diameter		0.250" (6.35mm)
Industry Recognized Mating Diameter		6.35mm (0.250", 1/4") - Headphone
Current Rating (Amps)		1 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
