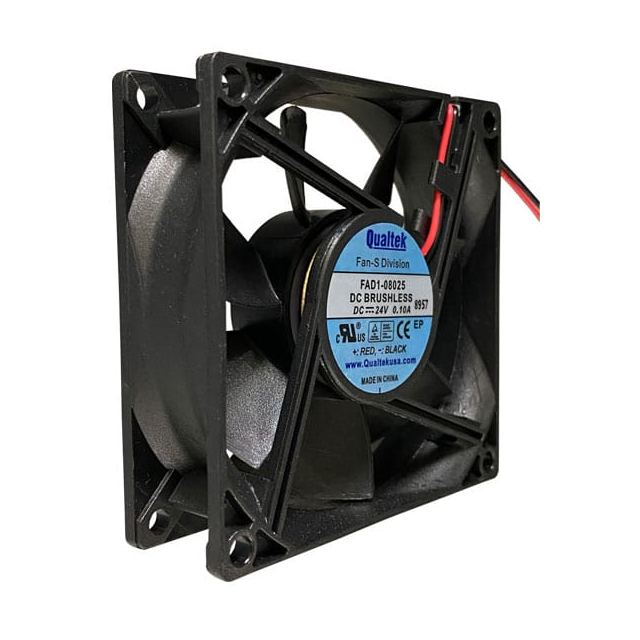

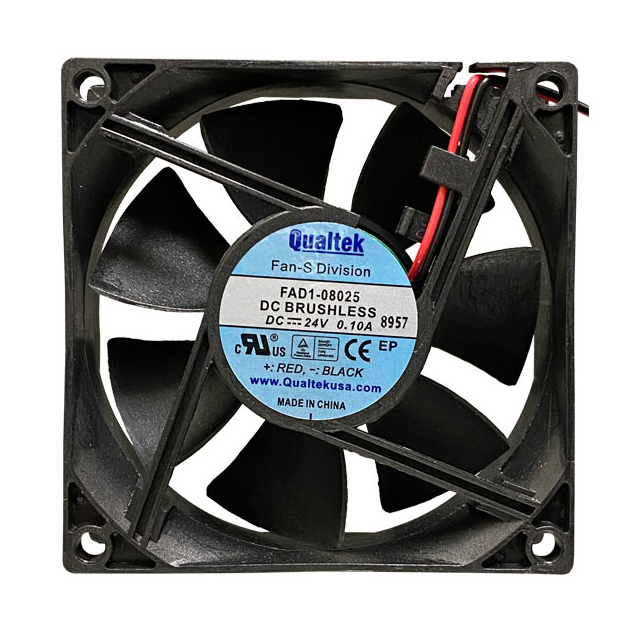

FAD1-08025DBLW11-A _ DC Brushless Fans (BLDC)_Fans_Fans, Blowers, Thermal Management

Part Number	FAD1-08025DBLW11-A
Manufacturer	Qualtek Electronics Corp.
Other Part Numbers	Q1092-ND Q1092
Description	FAN AXIAL 80X25MM 24VDC WIRE
Detailed Description	Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 24.4 CFM (0.683m³/min) 2 Wire Leads
Manufacturer Standard Lead Time	38 weeks
Datasheet	Datasheet

Category		Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC)
Manufacturer		Qualtek Electronics Corp.
Series		FAD1-08025-A
Packaging		Bulk
Part Status		Active
Voltage - Rated		24VDC
Size / Dimension		Square - 80mm L x 80mm H
Bearing Type		Ball
Current Rating (Amps)		0.060A
RPM		2000 RPM
Air Flow		24.4 CFM (0.683m³/min)
Width		25.00mm
Weight		0.159 lb (72.12 g)
Operating Temperature		14 ~ 158°F (-10 ~ 70°C)
Voltage Range		21.6 ~ 26.4VDC
Termination		2 Wire Leads
Approval Agency		CE, cURus, TUV
Lifetime @ Temp.		70000 Hrs @ 40°C
Fan Type		Tubeaxial
Noise		23.6dB(A)
Static Pressure		0.068 in H2O (17.0 Pa)
Material - Frame		Plastic
Material - Blade		Plastic
Power (Watts)		1.44 W

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8414.59.6590
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
