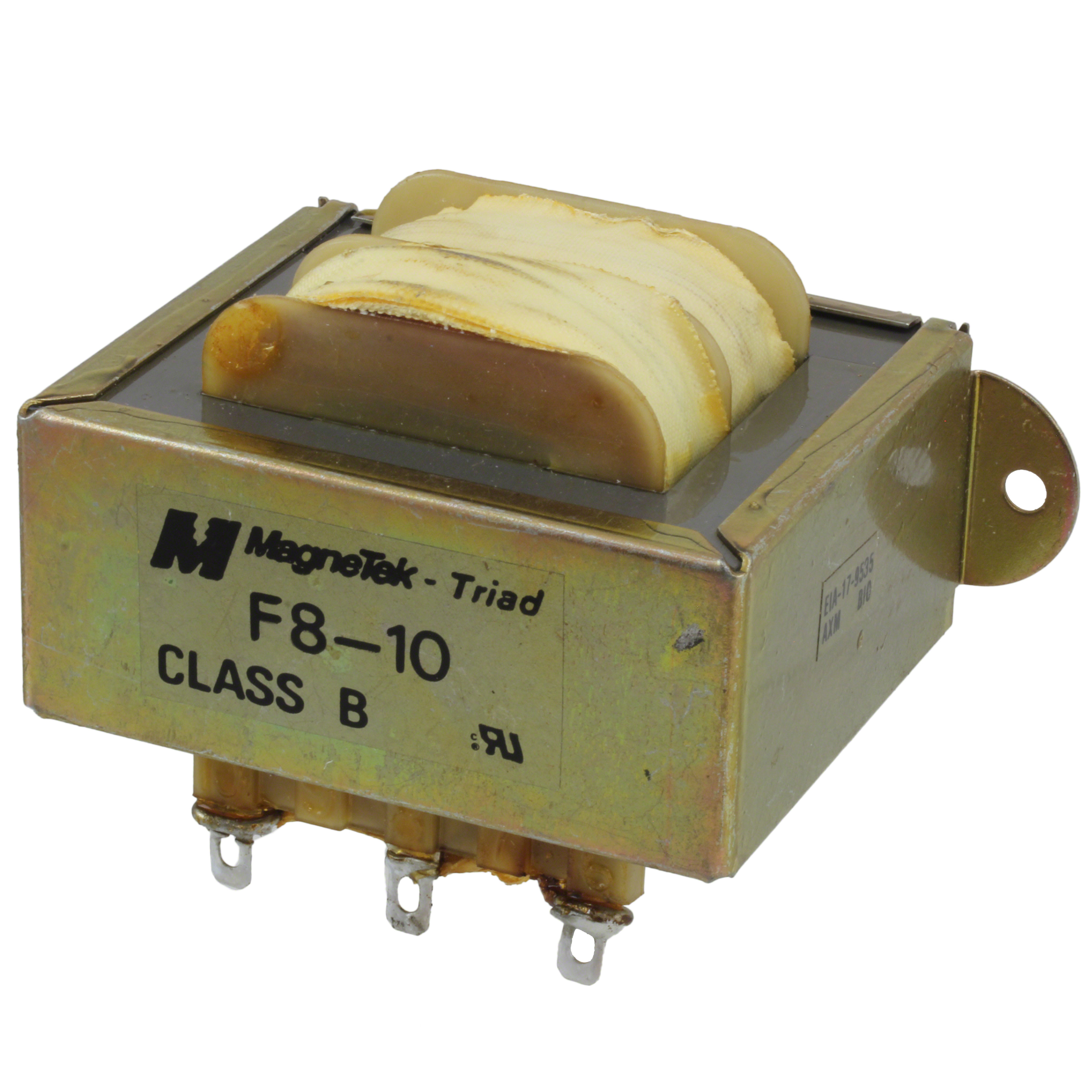

F8-10

F8-10

Part Number	F8-10
Manufacturer	Triad Magnetics
Other Part Numbers	237-1666-ND F8-10-NDR Q1156248 237-1666 F8-10-ND
Description	PWR XFMR LAMINATED 100VA CHAS MT
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Quick Pack
Packaging		Box
Part Status		Active
Size / Dimension		102.39mm L x 57.15mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		2.8 lbs (1.3 kg)
Termination Style		Solder, Quick Connect - 0.187" (4.7mm)
Primary Winding(s)		Single
Secondary Winding(s)		Single
Power - Max		100VA
Voltage - Isolation		2500VAC
Current - Output (Max)		10A
Voltage - Primary		115V
Height - Seated (Max)		65.07mm
Voltage - Secondary (Full Load)		10V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F8-10
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
