F410T-12MC

Part Number
F410T-12MC
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
563-1133-ND
F410T12MC
563-1133

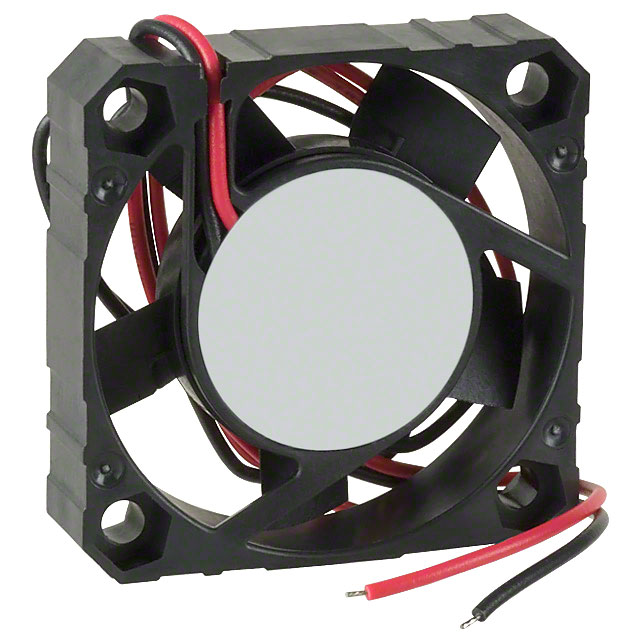

Description FAN AXIAL 40X10MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Sleeve 5.3 CFM (0.148m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
F410T
Packaging
Bulk
Part Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Bearing Type Sleeve
Current Rating (Amps) 0.060A
RPM 5800 RPM
Air Flow 5.3 CFM (0.148m³/min)
Width 10.00mm
Weight 0.044 lb (19.96 g)
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Voltage Range 10.2 ~ 13.8VDC
Termination 2 Wire Leads
Fan Type Tubeaxial
Noise 18.0dB(A)
Static Pressure 0.092 in H2O (23.0 Pa)
Material - Frame Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT)
Material - Blade Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT)
Power (Watts) 720 mW

Documents & Media

RESOURCE TYPE LINK
Datasheets F410T-12MC
Datasheets Multiple Devices Logo Change 05/Nov/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
