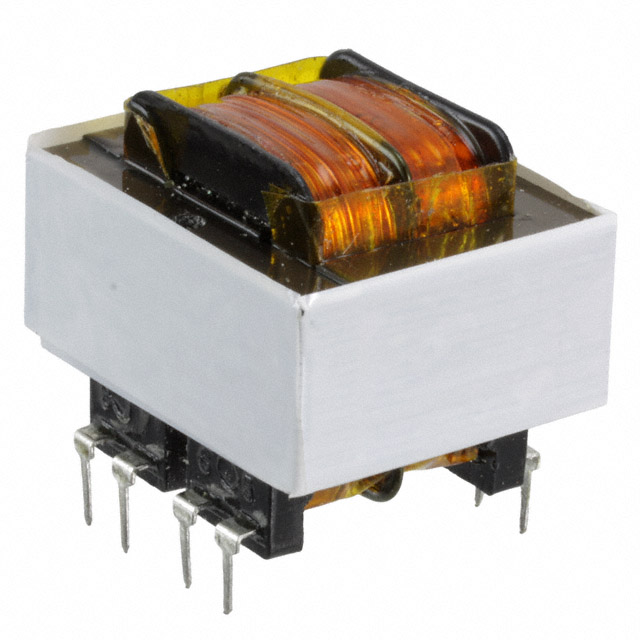

F28-200-C2

F28-200-C2

Part Number	F28-200-C2
Manufacturer	Triad Magnetics
Other Part Numbers	237-1531-ND F28-200-C2-ND F28-200-C2INACTIVE 237-1531 F28-200-C2-B
Description	PWR XFMR LAMINATED 6VA TH
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Split Pack™, Class 2/3, F
Packaging		Tray
Part Status		Active
Size / Dimension		41.28mm L x 33.32mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.44 lb (199.58 g)
Termination Style		PC Pin
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		6VA
Voltage - Isolation		2500Vrms
Current - Output (Max)		Parallel 400mA, Series 200mA
Voltage - Primary		115V
Height - Seated (Max)		33.32mm
Voltage - Secondary (Full Load)		Parallel 14V, Series 28V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 15

Can ship immediately.
