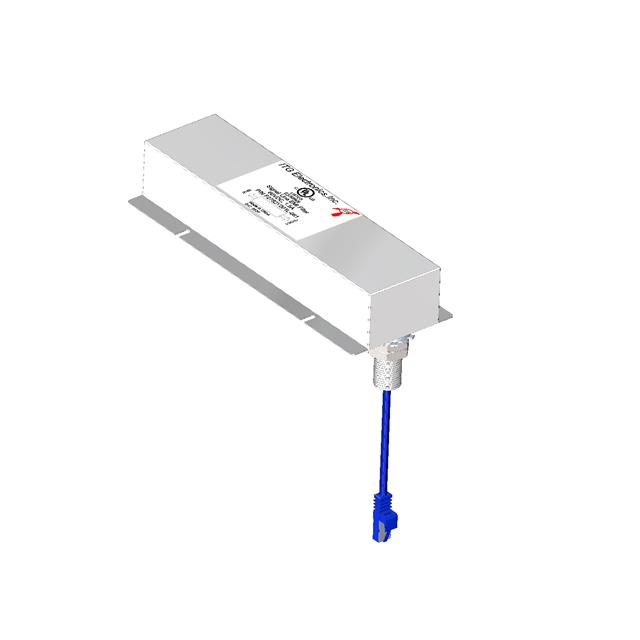

F2782Y001L-052

F2782Y001L-052

Part Number	F2782Y001L-052
Manufacturer	ITG Electronics, Inc.
Other Part Numbers	3013-F2782Y001L-052-ND 3013-F2782Y001L-052
Description	2 Channels 1.5A CAT5 Data line a
Detailed Description	LC (T-Type) EMI Filter 5th Order Low Pass 2 Channel 1.5 A Module
Datasheet	Datasheet

Product Attributes

Category		Filters EMI/RFI Filters (LC, RC Networks)
Manufacturer		ITG Electronics, Inc.
Series		F2782Y
Packaging		Bulk
Part Status		Active
Voltage - Rated		60V
Package / Case		Module
Size / Dimension		11.181" L x 6.693" W (284.00mm x 170.00mm)
Mounting Type		Chassis Mount
Type		Low Pass
Operating Temperature		-25°C ~ 85°C
Height		2.047" (52.00mm)
Attenuation Value		100dB @ 30MHz ~ 10GHz
Filter Order		5th
Applications		Data Lines for Mobile Devices
Technology		LC (T-Type)
ESD Protection		No
Number of Channels		2
Current		1.5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F2782Y001L-052

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant
