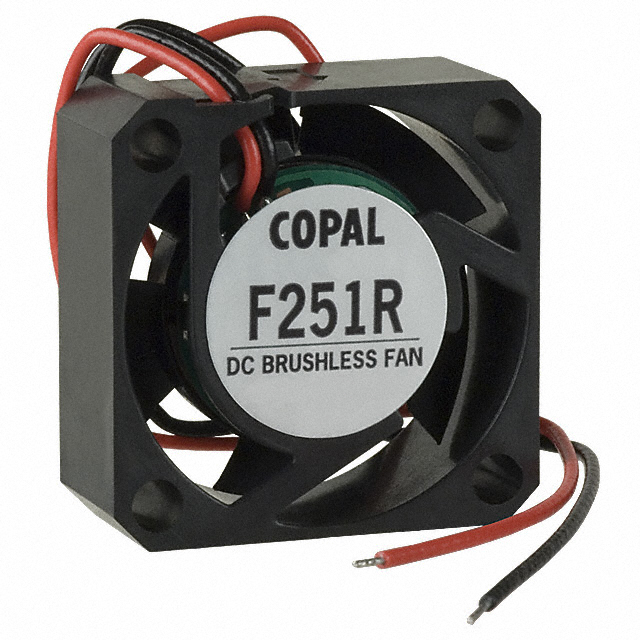

Part Number |
F251R-05LB
|
---|---|
Manufacturer | Nidec Copal Electronics (Nidec Components) |
Other Part Numbers |
563-1109-ND
563-1109
F251R05LB
Q6995651AA
|
Description | FAN AXIAL 25X10MM 5VDC WIRE |
Detailed Description | Fan Tubeaxial 5VDC Square - 25mm L x 25mm H 1 Ball/1 Sleeve 1.8 CFM (0.050m³/min) 2 Wire Leads |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Nidec Copal Electronics (Nidec Components) | |
Series |
F251R
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Voltage - Rated | 5VDC | |
Size / Dimension | Square - 25mm L x 25mm H | |
Bearing Type | 1 Ball/1 Sleeve | |
Current Rating (Amps) | 0.060A | |
RPM | 8000 RPM | |
Air Flow | 1.8 CFM (0.050m³/min) | |
Width | 10.00mm | |
Weight | 0.015 lb (6.8 g) | |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) | |
Voltage Range | 4.2 ~ 5.7VDC | |
Termination | 2 Wire Leads | |
Fan Type | Tubeaxial | |
Noise | 15.0dB(A) | |
Static Pressure | 0.120 in H2O (29.9 Pa) | |
Material - Frame | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) | |
Material - Blade | Acrylic Butadiene Styrene (ABS), Polybutylene Terephthalate (PBT) | |
Power (Watts) | 300 mW |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | F251R-05LB | |
Datasheets | Multiple Devices Logo Change 05/Nov/2018 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8414.59.6590 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
