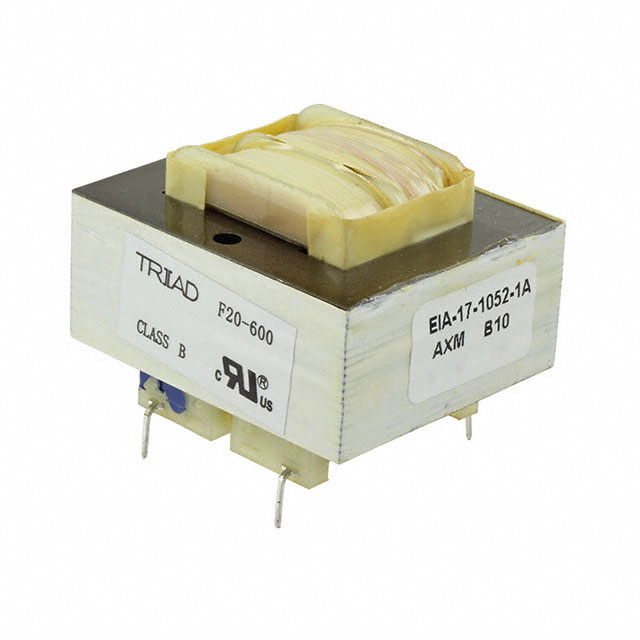

F20-600

F20-600

Part Number	F20-600
Manufacturer	Triad Magnetics
Other Part Numbers	237-1814-ND 237-1814
Description	PWR XFMR LAMINATED 12VA TH
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Split Pack™, Class 2/3, F
Packaging		Box
Part Status		Active
Size / Dimension		47.63mm L x 39.67mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.7 lb (317.51 g)
Termination Style		PC Pin
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		12VA
Voltage - Isolation		2500Vrms
Current - Output (Max)		Parallel 1.2A, Series 600mA
Voltage - Primary		115V
Height - Seated (Max)		36.50mm
Voltage - Secondary (Full Load)		Parallel 10V, Series 20V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6

Can ship immediately.
