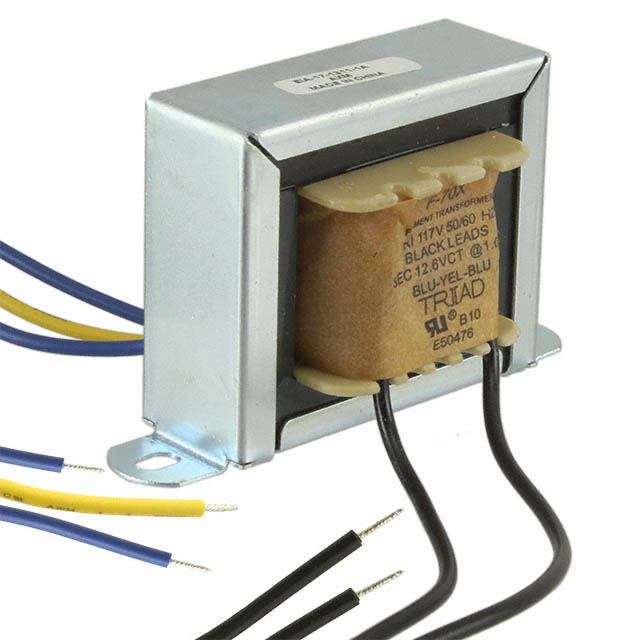

F-70X

F-70X

Part Number	F-70X
Manufacturer	Triad Magnetics
Other Part Numbers	237-2007-ND 237-2007
Description	PWR XFMR LAMINATED 12.6VA CHAS
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Single Secondary
Packaging		Box
Part Status		Active
Size / Dimension		84.12mm L x 44.45mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		1.3 lbs (589.7 g)
Termination Style		Wire Leads
Primary Winding(s)		Single
Secondary Winding(s)		Single
Power - Max		12.6VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		1A
Voltage - Primary		115V
Height - Seated (Max)		49.20mm
Voltage - Secondary (Full Load)		12.6V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F-70X
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 127

Can ship immediately.
