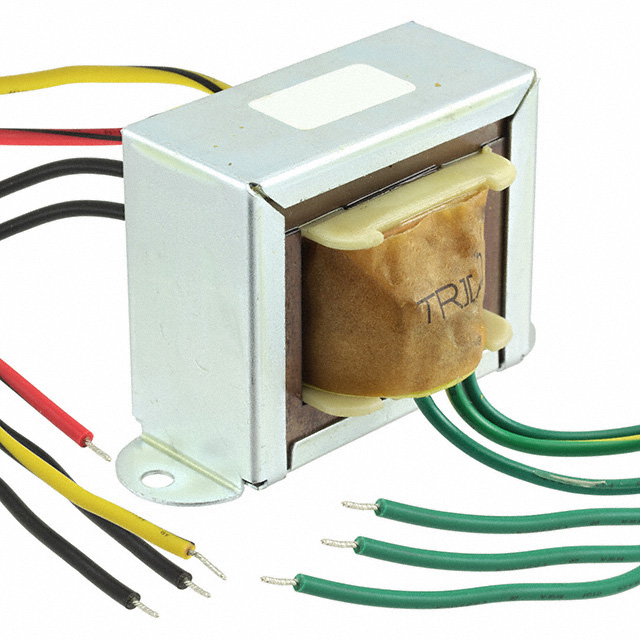

F-345X

F-345X

Part Number	F-345X
Manufacturer	Triad Magnetics
Other Part Numbers	237-1977-ND 237-1977
Description	PWR XFMR LAMINATED 24VA CHAS MT
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Single Secondary
Packaging		Box
Part Status		Active
Size / Dimension		84.12mm L x 50.80mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		1.3 lbs (589.7 g)
Termination Style		Wire Leads
Primary Winding(s)		Dual
Secondary Winding(s)		Single
Power - Max		24VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		1A
Voltage - Primary		115V, 230V
Height - Seated (Max)		49.20mm
Voltage - Secondary (Full Load)		24V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F-345X
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 26

Can ship immediately.
