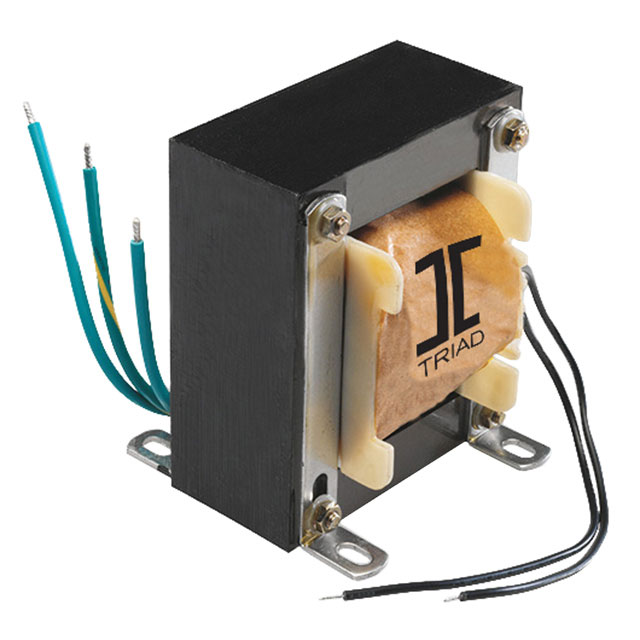

F-196U

F-196U

Part Number	F-196U
Manufacturer	Triad Magnetics
Other Part Numbers	F-196U-ND
Description	PWR XFMR LAMINATED 63VA CHAS MT
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Multiple Secondary
Packaging		Box
Part Status		Active
Size / Dimension		71.42mm L x 66.68mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		4 lbs (1.8 kg)
Termination Style		Wire Leads
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		63VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		Parallel 2A, Series 1A
Voltage - Primary		115V
Height - Seated (Max)		85.73mm
Voltage - Secondary (Full Load)		Parallel 15.5V, Series 32V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F-196U
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
