Part Number	F-156XP
Manufacturer	Triad Magnetics
Other Part Numbers	F-156XP-ND

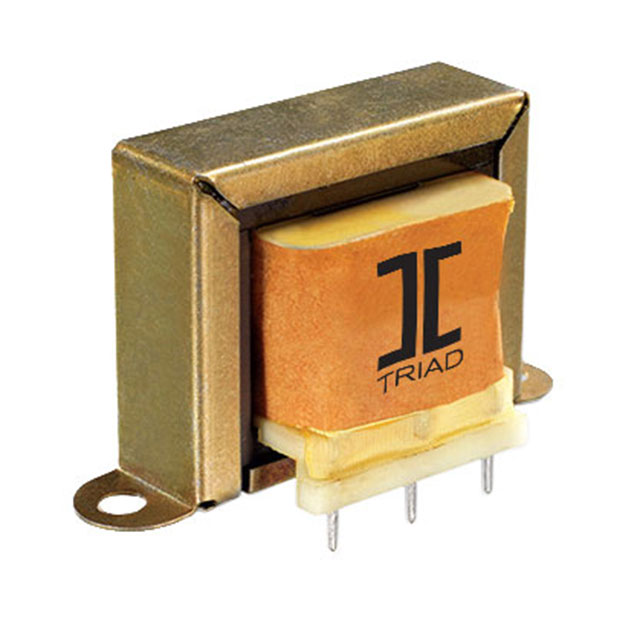

Description	PWR XFMR LAMINATED 7.5VA TH
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Single Primary
Packaging		Box
Part Status		Active
Size / Dimension		71.42mm L x 37.29mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.657 lb (298.01 g)
Termination Style		PC Pin
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		7.5VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		Parallel 130mA, Series 85mA
Voltage - Primary		115V
Height - Seated (Max)		41.28mm
Voltage - Secondary (Full Load)		Parallel 58V, Series 116V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		F-156XP
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
