EW410B

EW410B

Part Number	EW410B
Manufacturer	Asahi Kasei Microdevices Corporation (AKM)
Other Part Numbers	EW410BTR-ND EW410BCT-ND EW410BDKR-ND EW410BCT EW410BDKR EW410BTR EW410B-ND
Description	MAGNETIC SWITCH LATCH SOT23-3
Detailed Description	Digital Switch Latch Open Collector Hall Effect SOT-23-3

Product Attributes

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Asahi Kasei Microdevices Corporation (AKM)
Series		EW
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs

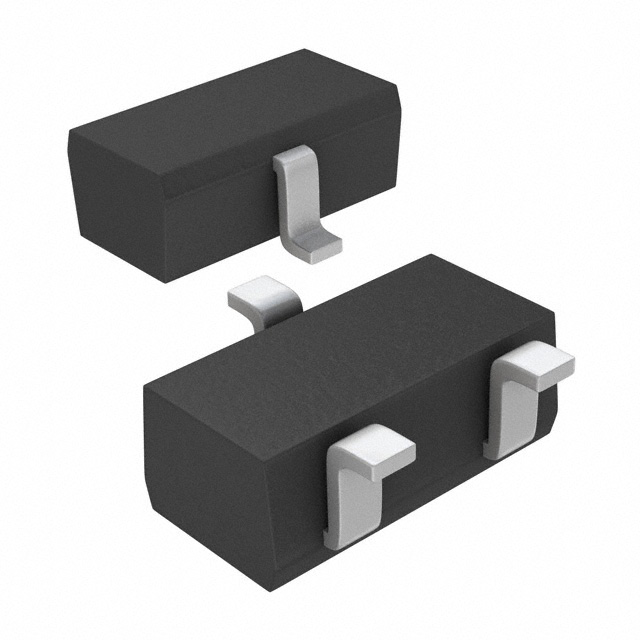

Package / Case		TO-236-3, SC-59, SOT-23-3
Output Type		Open Collector
Polarization		South Pole
Mounting Type		Surface Mount
Function		Latch
Operating Temperature		-40°C ~ 115°C (TA)
Voltage - Supply		3V ~ 26.4V
Technology		Hall Effect
Sensing Range		3mT Trip, -3mT Release
Current - Output (Max)		10mA
Current - Supply (Max)		6mA
Supplier Device Package		SOT-23-3
Test Condition		25°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EW410B

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
