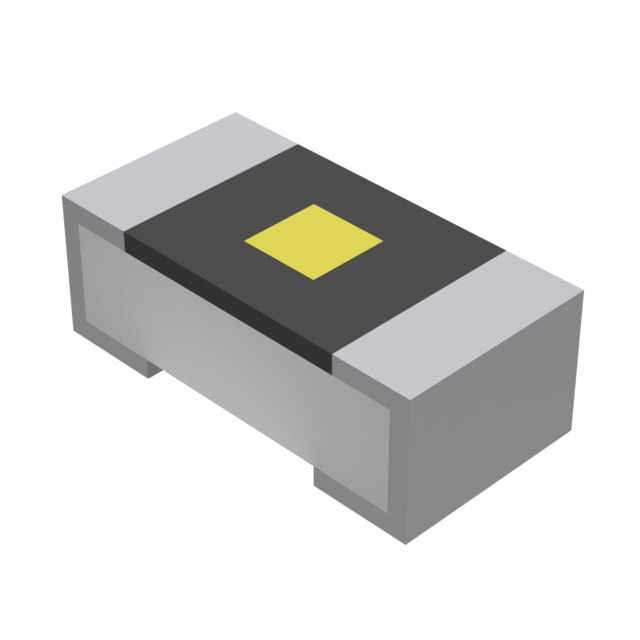

ESR18EZPF1001

ESR18EZPF1001

Part Number	ESR18EZPF1001
Manufacturer	ROHM Semiconductor
Other Part Numbers	RHM1.00KAFTR-ND RHM1.00KAFCT-ND RHM1.00KAFDKR-ND RHM1.00KAFTR RHM1.00KAFDKR RHM1.00KAFCT
Description	RES 1K OHM 1% 1/2W 1206
Detailed Description	1 kOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		ROHM Semiconductor
Series		ESR
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs
Power (Watts)		0.5W, 1/2W
Tolerance		±1%
Features		Automotive AEC-Q200, Pulse Withstanding
Package / Case		1206 (3216 Metric)
Temperature Coefficient		±100ppm/°C
Size / Dimension		0.126" L x 0.063" W (3.20mm x 1.60mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 155°C
Ratings		AEC-Q200
Number of Terminations		2
Supplier Device Package		1206
Height - Seated (Max)		0.026" (0.65mm)
Resistance		1 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ESR18EZPF1001

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6668

Can ship immediately.

Not recommended for new design, minimums may apply.
