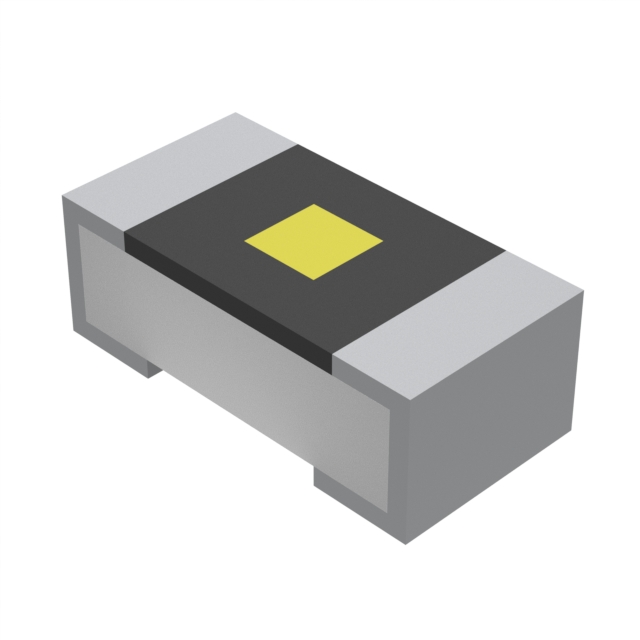

ESR01MZPJ300

ESR01MZPJ300

Part Number	ESR01MZPJ300
Manufacturer	ROHM Semiconductor
Other Part Numbers	846-ESR01MZPJ300TR-ND 846-ESR01MZPJ300CT-ND 846-ESR01MZPJ300TR 511-ESR01MZPJ300CT-ND 846-ESR01MZPJ300CT 511-ESR01MZPJ300TR-ND 511-ESR01MZPJ300TR 511-ESR01MZPJ300CT
Description	RES 30 OHM 5% 1/5W 0402
Detailed Description	30 Ohms ±5% 0.2W, 1/5W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		ROHM Semiconductor
Series		ESR
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Power (Watts)		0.2W, 1/5W
Tolerance		±5%
Features		Automotive AEC-Q200, Pulse Withstanding
Package / Case		0402 (1005 Metric)
Temperature Coefficient		±200ppm/°C
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 155°C
Ratings		AEC-Q200
Number of Terminations		2
Supplier Device Package		0402
Height - Seated (Max)		0.016" (0.40mm)
Resistance		30 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ESR01MZPJ300

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7048

Can ship immediately.
