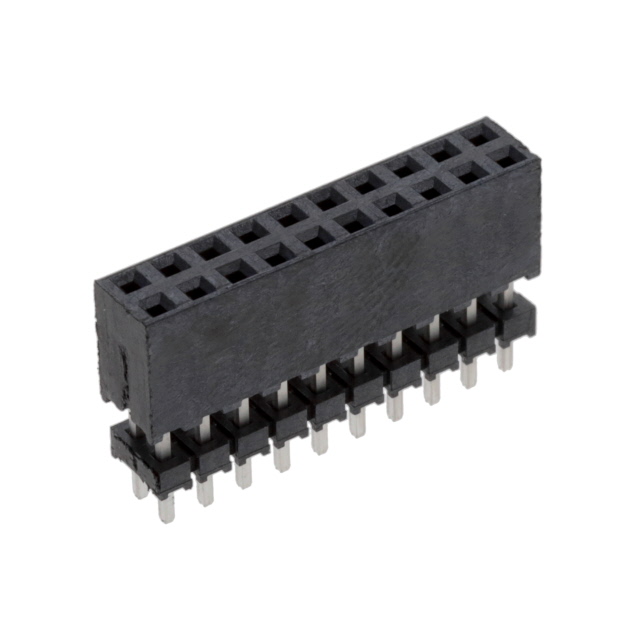

ESQT-110-03-F-D-375 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	ESQT-110-03-F-D-375
Manufacturer	Samtec, Inc.
Other Part Numbers	ESQT-110-03-F-D-375-ND
Description	CONN SOCKET 20POS 0.079 GOLD PCB
Detailed Description	20 Position Elevated Socket Connector 0.079" (2.00mm) Through Hole Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Samtec, Inc.
Series		ESQT
Packaging		Bulk
Part Status		Active
Connector Type		Elevated Socket
Current Rating (Amps)		4.5A per Contact
Mounting Type		Through Hole
Number of Positions		20
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Contact Type		Forked
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		3.00µin (0.076µm)
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.083" (2.11mm)
Insulation Height		0.375" (9.53mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.079" (2.00mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		ESQT-110-03-F-D-375

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
