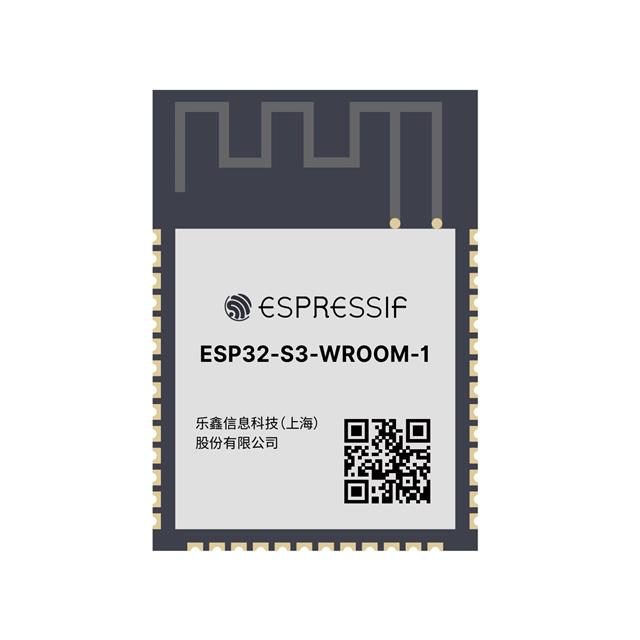

ESP32-S3-WROOM-1-N16R2 _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	ESP32-S3-WROOM-1-N16R2
Manufacturer	Espressif Systems
Other Part Numbers	1965-ESP32-S3-WROOM-1-N16R2TR-ND 1965-ESP32-S3-WROOM-1-N16R2CT-ND 1965-ESP32-S3-WROOM-1-N16R2DKR-ND 1965-ESP32-S3-WROOM-1-N16R2CT 1965-ESP32-S3-WROOM-1-N16R2TR 1965-ESP32-S3-WROOM-1-N16R2DKR
Description	RF TXRX MODULE BT PCB TRACE SMD
Detailed Description	Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		Espressif Systems
Series		ESP32-S3
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		41-SMD Module
Sensitivity		-103.5dBm
Mounting Type		Surface Mount
Frequency		2.4GHz
Memory Size		16MB Flash, 384kB ROM, 2MB SRAM
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		3V ~ 3.6V
Power - Output		20.5dBm
Data Rate		150Mbps
Protocol		802.11b/g/n, Bluetooth v5.0
Current - Receiving		95mA ~ 97mA
Current - Transmitting		285mA ~ 355mA
Antenna Type		PCB Trace
Utilized IC / Part		ESP32-S3R2
RF Family/Standard		Bluetooth, WiFi
Serial Interfaces		ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		ESP32-S3-WROOM-1-N16R2
Datasheets		ESP32-S3 Download Functions Security Advisory
Datasheets		ESP32 Chip Rev 12/Aug/2022

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
