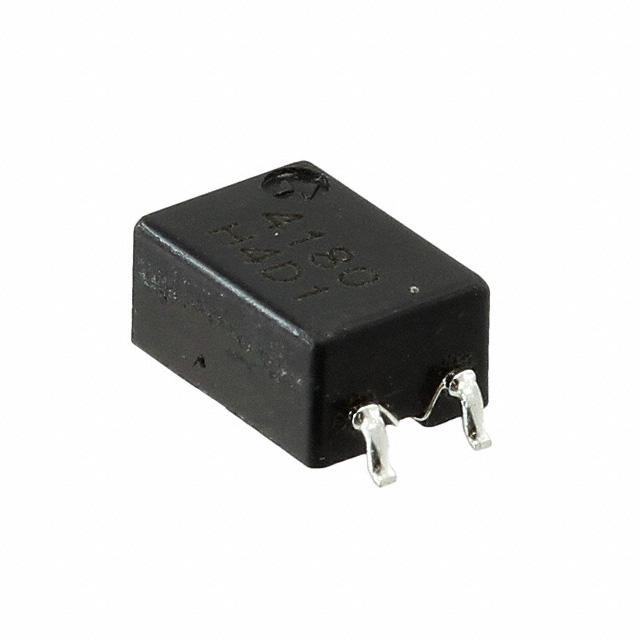

ESMIT-4180/A

ESMIT-4180/A

Part Number	ESMIT-4180/A
Manufacturer	Sumida Corporation
Other Part Numbers	308-2353-2-ND 308-2353-1-ND 308-2353-6-ND 308-2353-6 308-2353-2 308-2353-1
Description	XFMR MODEM SMD
Detailed Description	120µH Data/Voice Coupling Pulse Transformer 1:1 Surface Mount
Manufacturer Standard Lead Time	40 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Pulse Transformers
Manufacturer		Sumida Corporation
Series		CBM
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Inductance		120µH
Size / Dimension		0.205" L x 0.280" W (5.20mm x 7.10mm)
Mounting Type		Surface Mount
Operating Temperature		-20°C ~ 105°C
Transformer Type		Data/Voice Coupling
Turns Ratio - Primary:Secondary		1:1
Height - Seated (Max)		0.138" (3.50mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ESMIT-4180/A
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 16554

Can ship immediately.
