ESD3B24WS

Part Number
ESD3B24WS
Manufacturer Diotec Semiconductor
Other Part Numbers
4878-ESD3B24WS-ND
4878-ESD3B24WS
Description IC
Detailed Description 42V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323F
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Diotec Semiconductor
Series
Packaging
Bulk
Part Status Active

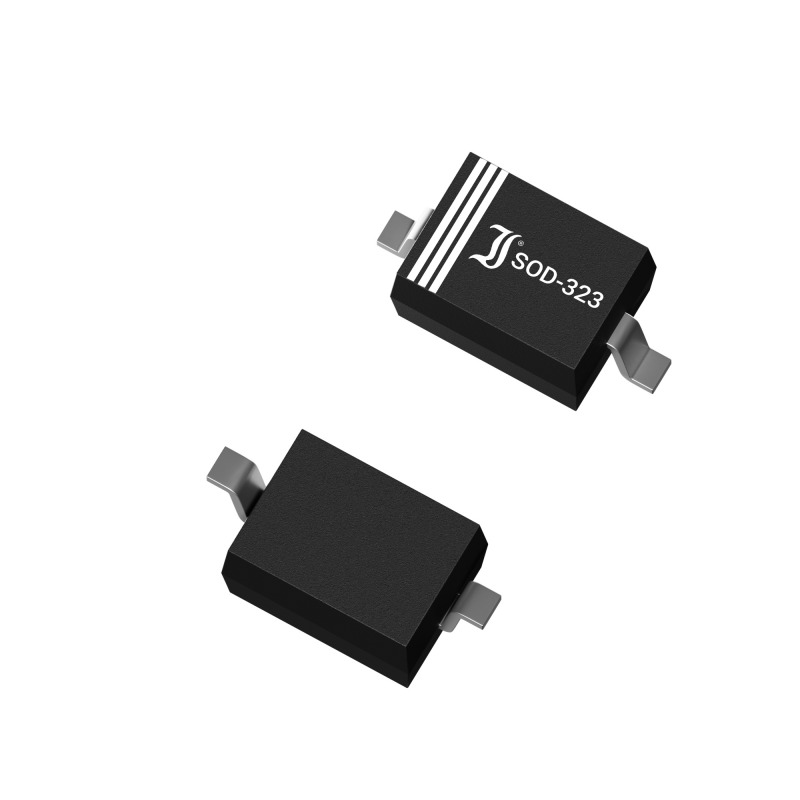

Package / Case SC-90, SOD-323F
Mounting Type Surface Mount
Type Zener
Operating Temperature -50°C ~ 125°C (TJ)
Applications General Purpose
Capacitance @ Frequency 50pF @ 1MHz
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Voltage - Reverse Standoff (Typ) 24V
Supplier Device Package SOD-323F
Bidirectional Channels 1
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 42V
Power - Peak Pulse 350W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets ESD3B24WS
Datasheets Diotec MDS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
