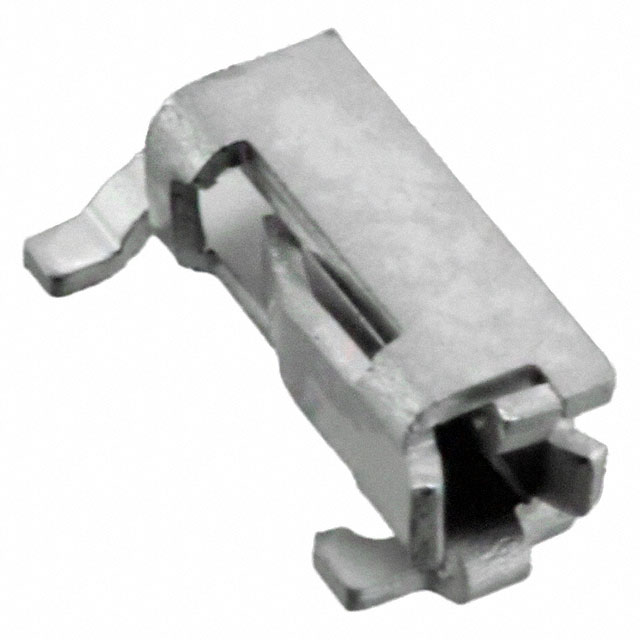

ES10S001JF1R4500

ES10S001JF1R4500

Part Number	ES10S001JF1R4500
Manufacturer	JAE Electronics
Other Part Numbers	670-2750-2-ND 670-2750-1-ND 670-2750-6-ND 670-2750-6 670-2750-1 670-2750-2
Description	CONN SSL SCKT CONT 24-26AWG SLDR
Detailed Description	24-26 AWG SSL Contact, Socket Solder Surface Mount, Right Angle
Manufacturer Standard Lead Time	15 weeks

Product Attributes

Category		Connectors, Interconnects Solid State Lighting Connectors Solid State Lighting Connector Contacts
Manufacturer		JAE Electronics
Series		ES10
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Connector Type		Contact, Socket
Contact Finish		Tin
Current Rating (Amps)		2A
Mounting Type		Surface Mount, Right Angle
Wire Gauge		24-26 AWG
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Termination		Solder
Contact Material		Copper Alloy
Mating Cycles		5
Number of Positions		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 9000

Can ship immediately.
