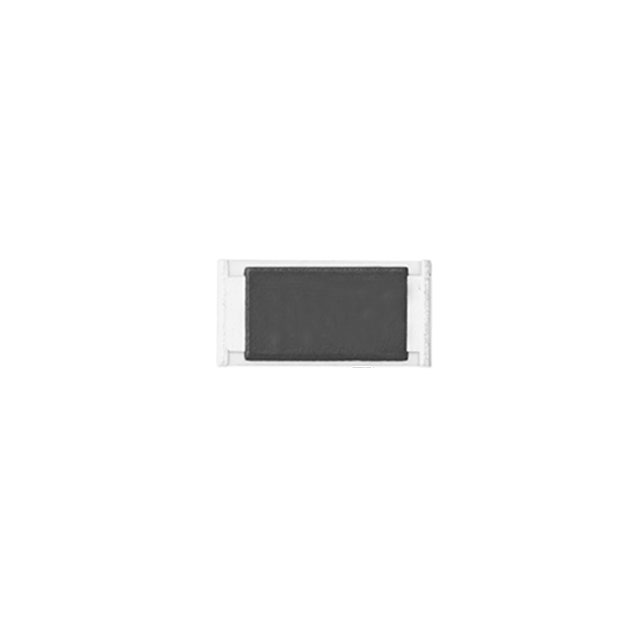

ERJ-U0XF2741Y

ERJ-U0XF2741Y

Part Number	ERJ-U0XF2741Y
Manufacturer	Panasonic Electronic Components
Other Part Numbers	10-ERJ-U0XF2741YTR-ND ERJU0XF2741Y 10-ERJ-U0XF2741YTR
Description	RES 2.74K OHM 1% 1/32W 01005
Detailed Description	2.74 kOhms ±1% 0.03W, 1/32W Chip Resistor 01005 (0402 Metric) Anti-Sulfur Thick Film
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Panasonic Electronic Components
Series		ERJ-U0X
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		0.03W, 1/32W
Tolerance		±1%
Features		Anti-Sulfur
Package / Case		01005 (0402 Metric)
Temperature Coefficient		±200ppm/°C
Size / Dimension		0.016" L x 0.008" W (0.40mm x 0.20mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 125°C
Number of Terminations		2
Supplier Device Package		01005
Height - Seated (Max)		0.006" (0.15mm)
Resistance		2.74 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ERJ-U0XF2741Y

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
