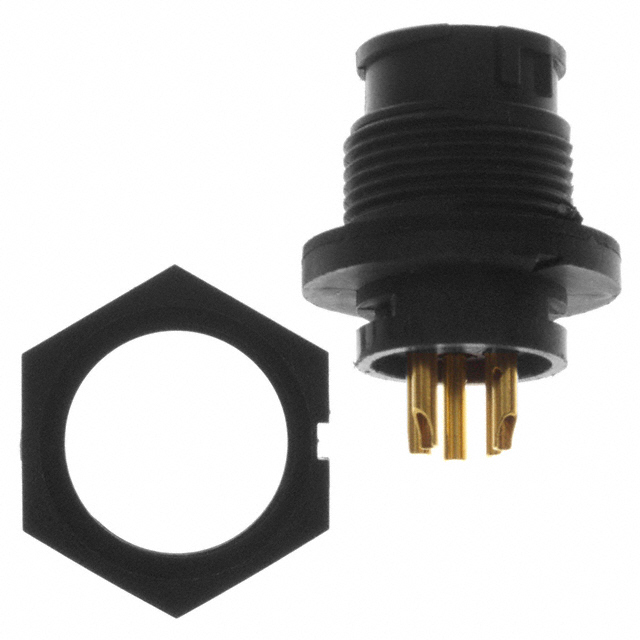

Part Number |
EN3P5FX
|
---|---|
Manufacturer | Switchcraft / Conxall |
Other Part Numbers |
SC264-ND
SC264
|
Description | CONN RCPT FMALE 5P GOLD SLDR CUP |
Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Solder Cup |
Manufacturer Standard Lead Time | 8 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Switchcraft / Conxall | |
Series |
EN3®
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Color | Black | |
Voltage Rating | 250VAC/DC | |
Current Rating (Amps) | 7.5A | |
Mounting Type | Panel Mount | |
Shielding | Unshielded | |
Number of Positions | 5 | |
Orientation | Keyed | |
Operating Temperature | -40°C ~ 65°C | |
Applications | General Purpose, Instrumentation, Marine, Medical | |
Fastening Type | Bayonet Lock | |
Termination | Solder Cup | |
Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | |
Material Flammability Rating | UL94 V-0 | |
Mounting Feature | Bulkhead - Front Side Nut | |
Contact Material | Copper Alloy | |
Contact Finish - Mating | Gold | |
Shell Material | Thermoplastic | |
Insert Material | Elastomer | |
Primary Material | Plastic |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | EN3P5FX | |
Datasheets | Switchcraft RoHS Cert | |
Datasheets | EN3P3 Series Panel Cutout | |
Datasheets | EN3P3 Series Side |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4020 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
