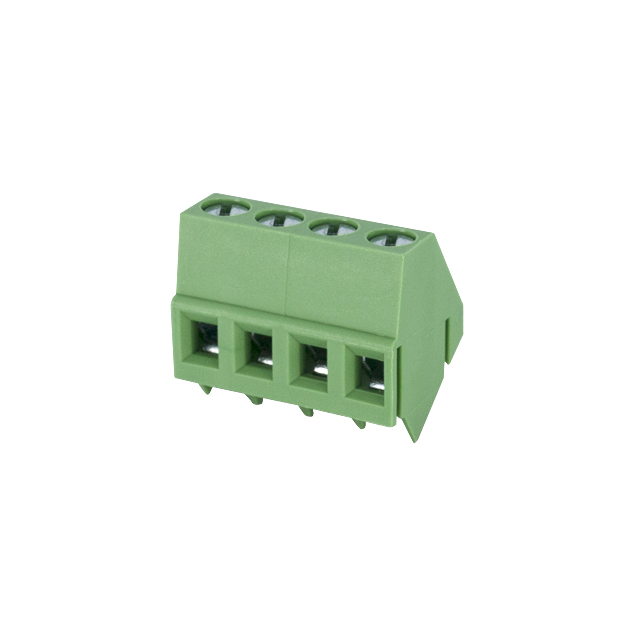

EK500A-04P

Part Number
EK500A-04P
Manufacturer DINKLE Corporation USA
Other Part Numbers
2861-EK500A-04P-ND
2861-EK500A-04P
Description TERM BLK 4POS 5.00MM SCRW PLG
Detailed Description 4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Datasheet Datasheet

Product Attributes

Category
Manufacturer DINKLE Corporation USA
Series
EK500A
Packaging
Bulk
Part Status Active
Color Green
Mounting Type Through Hole
Wire Gauge 12-24 AWG
Pitch 0.197" (5.00mm)
Mating Orientation 45° (135°) Angle with Board
Positions Per Level 4
Wire Termination Screw - Rising Cage Clamp
Current 20 A
Number of Levels 1

Documents & Media

RESOURCE TYPE LINK
Datasheets EK500A-04P

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
