EK 09

Part Number
EK 09
Manufacturer Sanken Electric Co., Ltd.
Other Part Numbers
EK09-ND
EK 09 DK
EK 09-ND

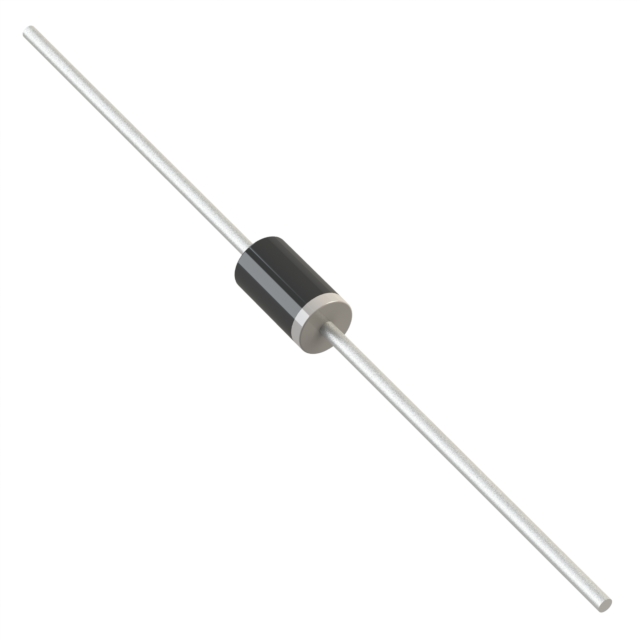

Description DIODE SCHOTTKY 90V 700MA AXIAL
Detailed Description Diode 90 V 700mA Through Hole

Product Attributes

Category
Manufacturer Sanken Electric Co., Ltd.
Series
Packaging
Bulk
Part Status Obsolete
Package / Case Axial
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Current - Average Rectified (Io) 700mA
Operating Temperature - Junction -40°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 90 V
Voltage - Forward (Vf) (Max) @ If 810 mV @ 700 mA
Current - Reverse Leakage @ Vr 1 mA @ 90 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
