EFB-RD22C413

Part Number
EFB-RD22C413
Manufacturer Panasonic Electronic Components
Other Part Numbers
P9951-ND
EFBRD22C413
P9951-NDR
P9951

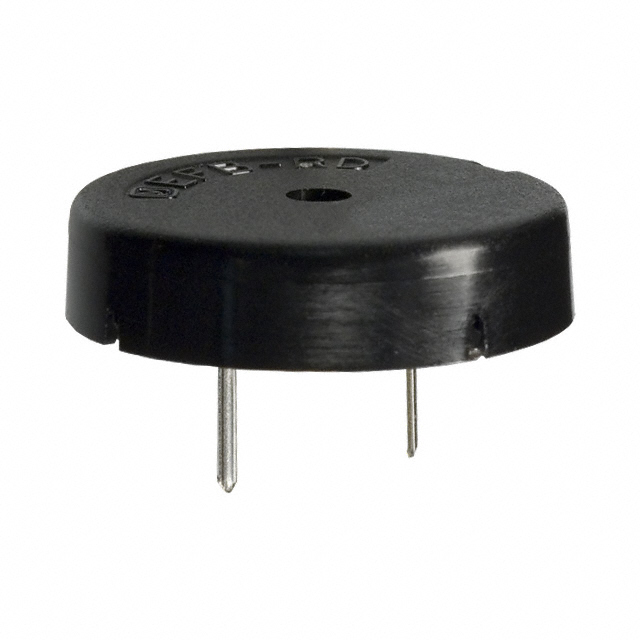

Description BUZZER PIEZO 15V 22MM TH
Detailed Description Buzzers Transducer, Externally Driven Piezo 15 V 4kHz 80dB @ 15V, 10cm Through Hole PC Pins
Datasheet Datasheet

Product Attributes

Category
Manufacturer Panasonic Electronic Components
Series
EFB
Packaging
Bulk
Part Status Obsolete
Size / Dimension 0.866" Dia (22.00mm)
Mounting Type Through Hole
Frequency 4kHz
Operating Temperature -10°C ~ 60°C
Sound Pressure Level (SPL) 80dB @ 15V, 10cm
Input Type Peak-Peak Signal
Operating Mode Single Tone
Voltage Range 30V (Max)
Technology Piezo
Termination PC Pins
Port Location Top
Driver Circuitry Transducer, Externally Driven
Height - Seated (Max) 0.256" (6.50mm)
Voltage - Rated 15 V

Documents & Media

RESOURCE TYPE LINK
Datasheets EFB-RD22C413
Datasheets EFB-R, A, B Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8531.80.9041
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
