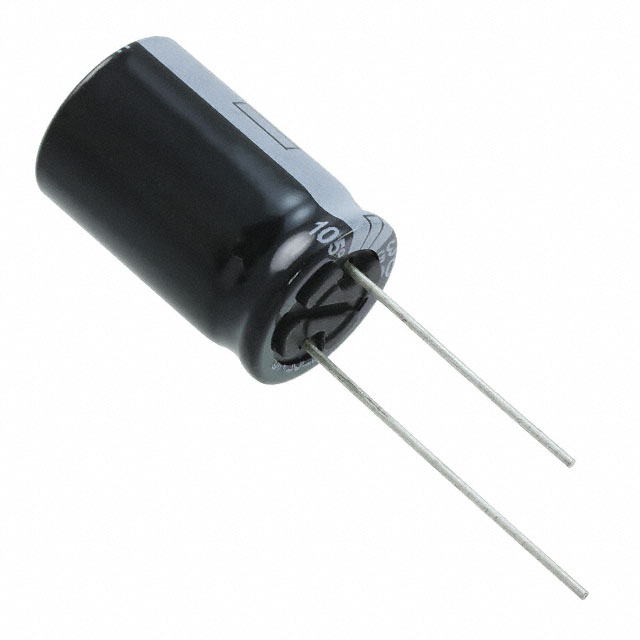

EEU-FS1K681B _ Aluminum Electrolytic Capacitors_Capacitors

Part Number	EEU-FS1K681B
Manufacturer	Panasonic Electronic Components
Other Part Numbers	PCE5185CT-ND PCE5185TB-ND PCE5185CT PCE5185TB EEUFS1K681B
Description	CAP ALUM 680UF 20% 80V RADIAL
Detailed Description	680 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Capacitors Aluminum Electrolytic Capacitors
Manufacturer		Panasonic Electronic Components
Series		FS-A
Packaging		Cut Tape (CT) Tape & Box (TB)
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can
Size / Dimension		0.630" Dia (16.00mm)
Polarization		Polar
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose
Lead Spacing		0.295" (7.50mm)
Lifetime @ Temp.		10000 Hrs @ 105°C
Height - Seated (Max)		1.063" (27.00mm)
Capacitance		680 µF
Voltage - Rated		80 V
Impedance		25 mOhms
Ripple Current @ Low Frequency		1.875 A @ 120 Hz
Ripple Current @ High Frequency		2.5 A @ 100 kHz

RESOURCE TYPE		LINK
Datasheets		EEU-FS1K681B
Datasheets		Alum Elect Cap, Packaging Spec
Datasheets		Aluminum Electrolytic Capacitor Catalog

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
