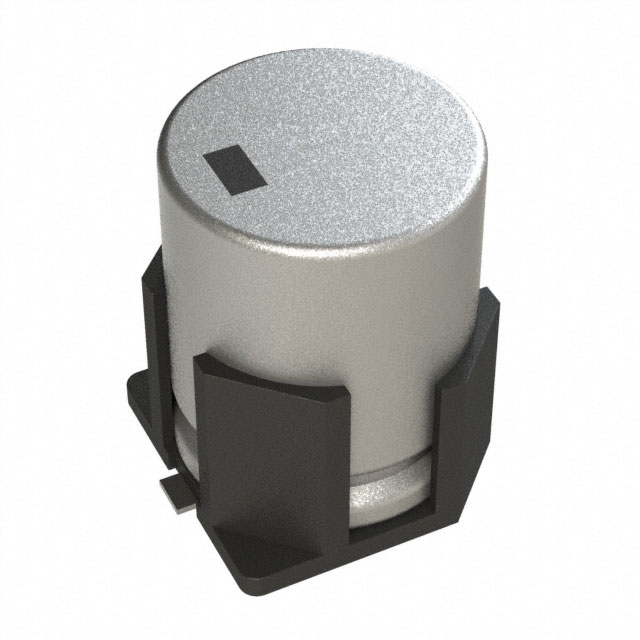

EEE-FP1E221AV _ Aluminum Electrolytic Capacitors_Capacitors

Part Number	EEE-FP1E221AV
Manufacturer	Panasonic Electronic Components
Other Part Numbers	P124764TR-ND P124764CT-ND P124764DKR-ND P124764TR P124764CT EEEFP1E221AV P124764DKR
Description	CAP ALUM 220UF 20% 25V SMD
Detailed Description	220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 80mOhm @ 100kHz 2000 Hrs @ 105°C
Manufacturer Standard Lead Time	24 weeks

Category		Capacitors Aluminum Electrolytic Capacitors
Manufacturer		Panasonic Electronic Components
Series		FP, Anti-Vibration
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can - SMD
Size / Dimension		0.315" Dia (8.00mm)
Polarization		Polar
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 105°C
Applications		Automotive, High Temperature Reflow
Ratings		AEC-Q200
ESR (Equivalent Series Resistance)		80mOhm @ 100kHz
Lifetime @ Temp.		2000 Hrs @ 105°C
Surface Mount Land Size		0.327" L x 0.327" W (8.30mm x 8.30mm)
Height - Seated (Max)		0.425" (10.80mm)
Capacitance		220 µF
Voltage - Rated		25 V
Ripple Current @ Low Frequency		552.5 mA @ 120 Hz
Ripple Current @ High Frequency		850 mA @ 100 kHz

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
