EDZ1100/5 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	EDZ1100/5
Manufacturer	On-Shore Technology, Inc.
Other Part Numbers	ED1749-ND ED1749-NDR ED1749 EDZ11005

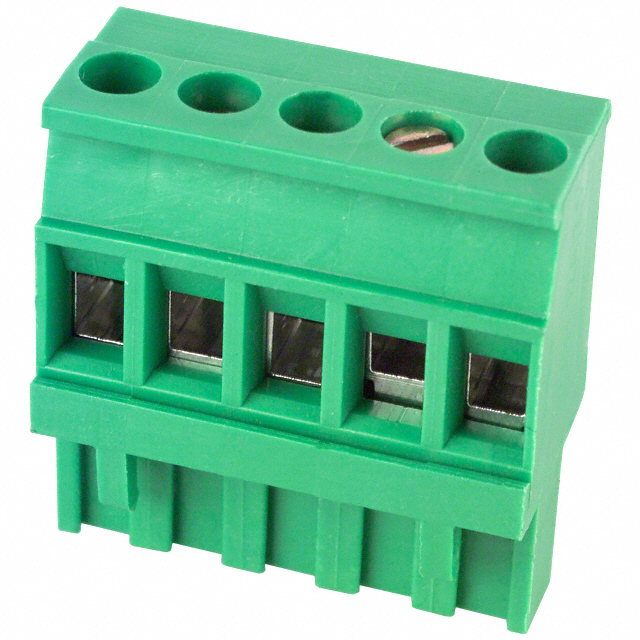

Description	TERM BLOCK PLUG 5POS 5.08MM
Detailed Description	5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line)
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		On-Shore Technology, Inc.
Series		EDZ1100
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		5
Pitch		0.200" (5.08mm)
Type		Plug, Female Sockets
Operating Temperature		-30°C ~ 105°C
Termination Style		Screw
Material Flammability Rating		UL94 V-0
Number of Levels		1
Wire Gauge or Range - AWG		10-22 AWG
Wire Gauge or Range - mm²		2.5mm²
Positions Per Level		5
Contact Material		Copper Tin Alloy
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5 Nm (4.4 Lb-In)
Wire Strip Length		7mm
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
