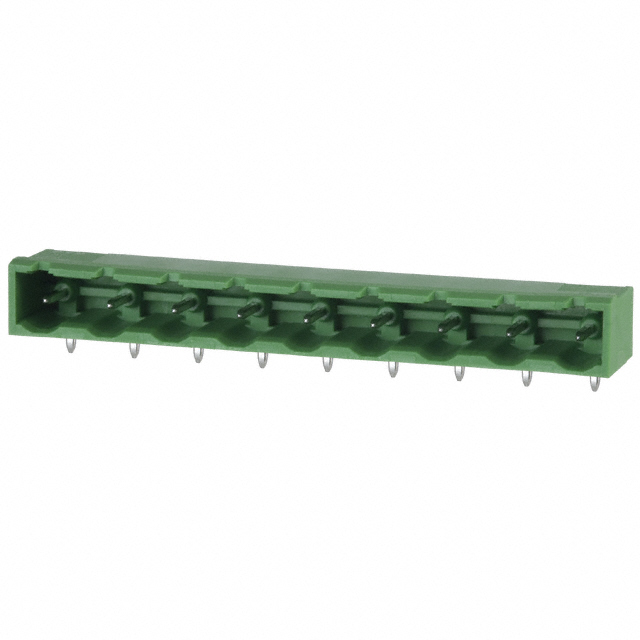

EDSTLZ960/9

EDSTLZ960/9

Part Number	EDSTLZ960/9
Manufacturer	On-Shore Technology, Inc.
Other Part Numbers	ED1872-ND ED1872
Description	TERM BLOCK HDR 9POS 90DEG 7.62MM
Detailed Description	9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Solder
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		On-Shore Technology, Inc.
Series		EDSTLZ960
Packaging		Bulk
Part Status		Active
Mounting Type		Solder
Number of Positions		9
Pitch		0.300" (7.62mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-30°C ~ 105°C
Number of Levels		1
Positions Per Level		9
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA), Nylon
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.138" (3.50mm)
Voltage - UL		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EDSTLZ960/9
Datasheets		ED Part Number Breakdown
Datasheets		EDSTLZ960 Series Front
Datasheets		EDSTLZ960 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
