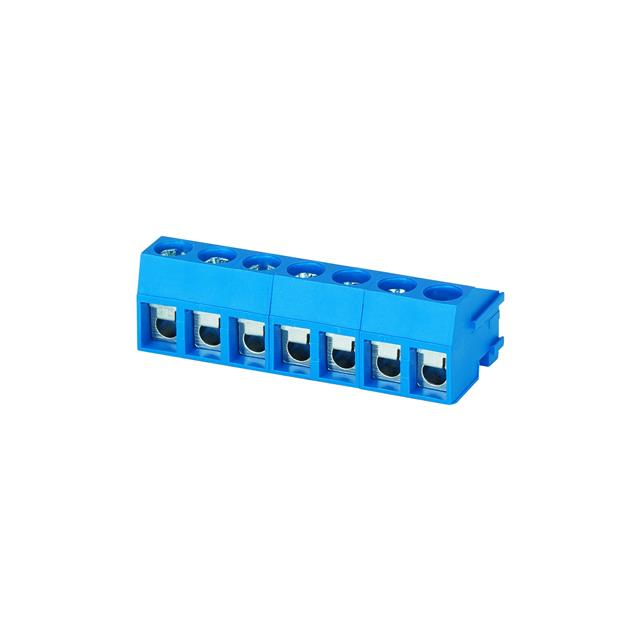

ED130F-07P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	ED130F-07P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-ED130F-07P-ND 2861-ED130F-07P
Description	TERM BLK 7POS 5.00mm SCRW PLG
Detailed Description	7 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		ED
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Blue
Mounting Type		Free Hanging (In-Line)
Number of Positions		7
Pitch		0.197" (5.00mm)
Screw Size		M2.5
Type		Plug for Unshrouded Header
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw - Leaf Spring, Wire Guard
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		14-22 AWG
Wire Gauge or Range - mm²		0.5-1.5mm²
Positions Per Level		7
Contact Material		Copper Alloy
Plug Wire Entry		90°
Housing Material		Polybutylene Terephthalate (PBT)
Torque - Screw		0.3 Nm (2.6 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		5-6mm
Insulation Height		0.425" (10.80mm)
Current - UL		7 A
Voltage - IEC		250 V
Voltage - UL		300 V
