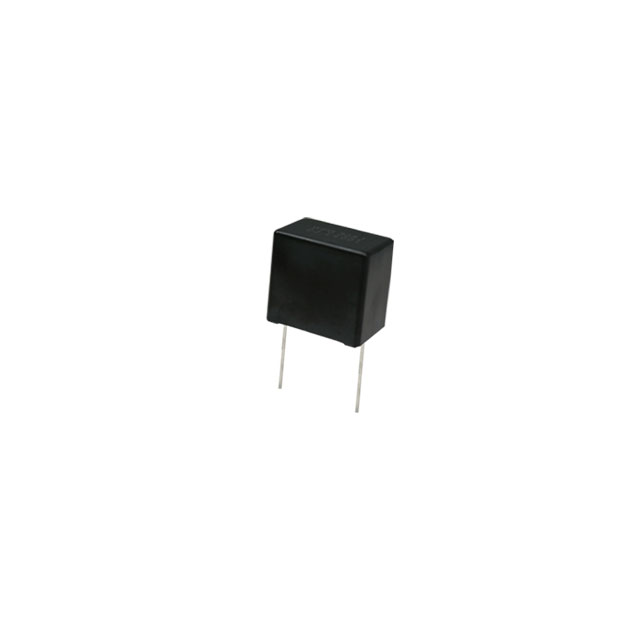

ECW-FG80605JA

Part Number
ECW-FG80605JA
Manufacturer Panasonic Electronic Components
Other Part Numbers
10-ECW-FG80605JA-ND
ECWFG80605JA
10-ECW-FG80605JA
Description CAP FILM 6.0UF 800VDC RADIAL
Detailed Description 6 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Manufacturer Standard Lead Time 29 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Panasonic Electronic Components
Series
ECWFG
Packaging
Bulk
Part Status Active
Tolerance ±5%
Features High Temperature
Package / Case Radial
Mounting Type Through Hole
Operating Temperature -40°C ~ 110°C
Applications Automotive; High Frequency, Switching
Lead Spacing 1.083" (27.50mm)
Termination PC Pins
Ratings AEC-Q200
Dielectric Material Polypropylene (PP), Metallized
Voltage Rating - DC 800V
Height - Seated (Max) 1.181" (30.00mm)
Capacitance 6 µF
Size / Dimension 1.240" L x 0.630" W (31.50mm x 16.00mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets ECW-FG80605JA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8532.25.0070
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
