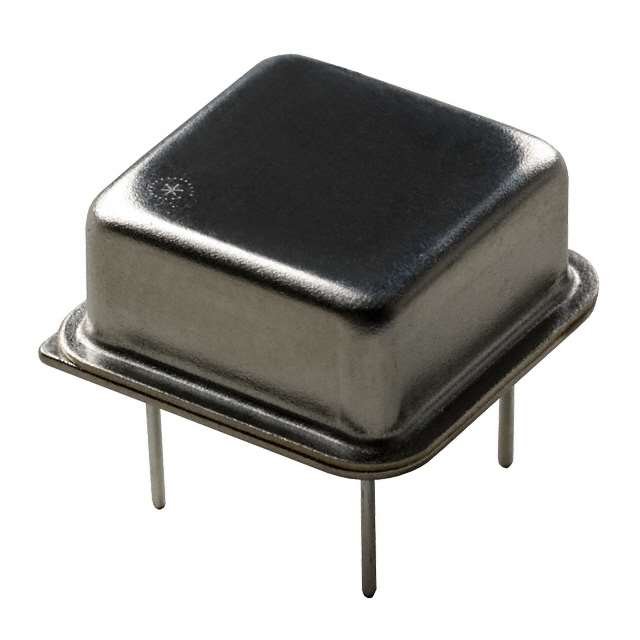

ECS-P83-AX

ECS-P83-AX

Part Number	ECS-P83-AX
Manufacturer	ECS Inc. International
Other Part Numbers	ECS-P83-AX-ND
Description	XTAL OSC PROG XO HCMOS 3.3V
Detailed Description	XO (Standard) HCMOS 1 MHz ~ 125 MHz Programmable Oscillator 3.3V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Programmable Oscillators
Manufacturer		ECS Inc. International
Series		ECS-P83X
Packaging		Tube
Part Status		Active
Package / Case		8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension		0.520" L x 0.520" W (13.20mm x 13.20mm)
Mounting Type		Through Hole
Output		HCMOS
Function		Enable/Disable
Programmable Type		Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Voltage - Supply		3.3V
Current - Supply (Max)		28mA
Height - Seated (Max)		0.213" (5.40mm)
Frequency Stability (Total)		±100ppm
Available Frequency Range		1 MHz ~ 125 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-P83-AX
Datasheets		ECS-UPO-8PIN(X) Bottom

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
