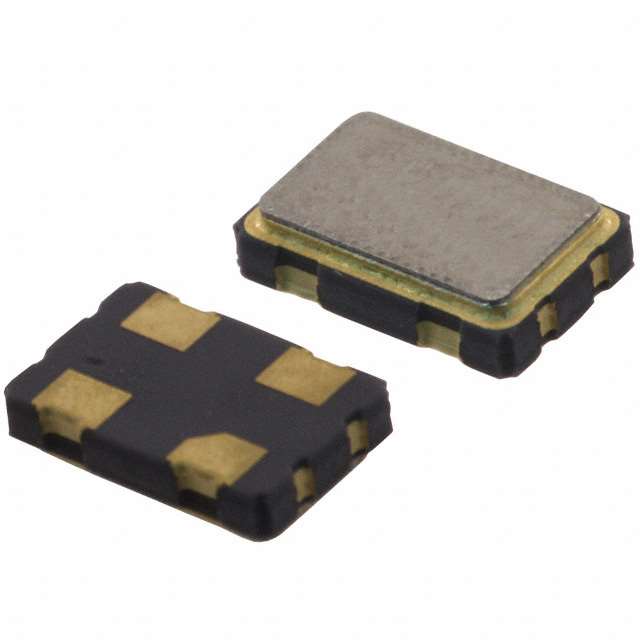

ECS-3963-800-BN-TR

ECS-3963-800-BN-TR

Part Number	ECS-3963-800-BN-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC1044TR-ND XC1044CT-ND XC1044DKR-ND ECS3963800BNTR XC1044DKR XC1044CT XC1044TR
Description	XTAL OSC XO 80.0000MHZ HCMOS SMD
Detailed Description	80 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-3963-BN
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±50ppm
Voltage - Supply		3.3V
Current - Supply (Max)		35mA
Height - Seated (Max)		0.051" (1.30mm)
Frequency		80 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-3963-800-BN-TR
Datasheets		ECS-(3518,3525,3963) Series Top
Datasheets		ECS-3963 Series Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13964

Can ship immediately.
