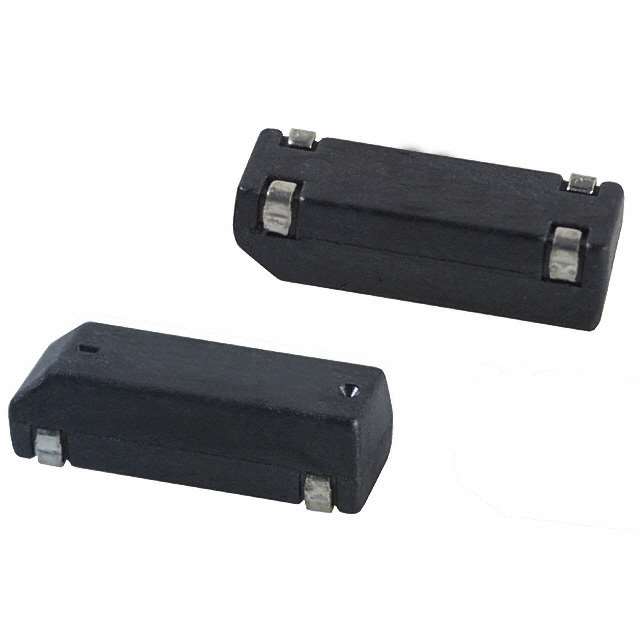

ECS-35-18-7SX-TR

ECS-35-18-7SX-TR

Part Number	ECS-35-18-7SX-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2034-2-ND XC2034-1-ND XC2034-6-ND XC2034-6 XC2034-2 XC2034-1
Description	CRYSTAL 3.579545MHZ 18PF SMD
Detailed Description	3.579545 MHz ±30ppm Crystal 18pF 200 Ohms 4-SOJ, 9.40mm pitch

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-3SX
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs
Package / Case		4-SOJ, 9.40mm pitch
Load Capacitance		18pF
Size / Dimension		0.492" L x 0.181" W (12.50mm x 4.60mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.146" (3.70mm)
ESR (Equivalent Series Resistance)		200 Ohms
Frequency		3.579545 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-35-18-7SX-TR
Datasheets		Crystal Part Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 17547

Can ship immediately.

Not recommended for new design, minimums may apply.
