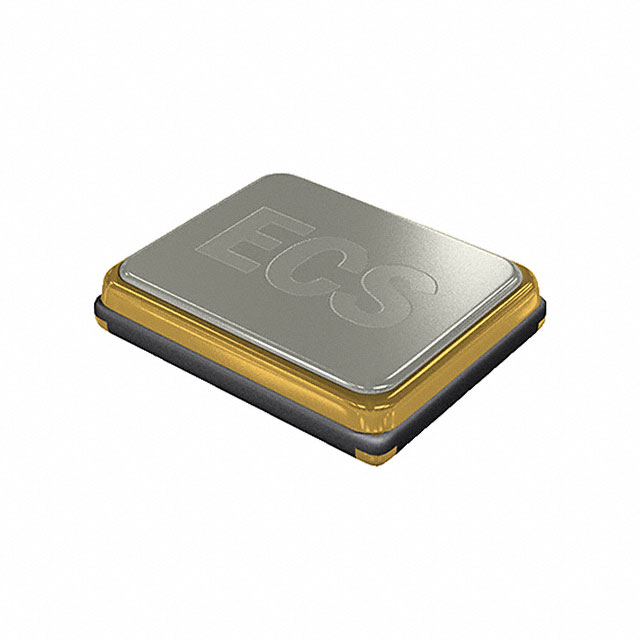

ECS-320-12-33-AGN-TR

ECS-320-12-33-AGN-TR

Part Number	ECS-320-12-33-AGN-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC2529TR-ND XC2529CT-ND XC2529DKR-ND XC2529CT XC2529TR XC2529DKR
Description	CRYSTAL 32.0000MHZ 12PF SMD
Detailed Description	32 MHz ±25ppm Crystal 12pF 40 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-32
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		12pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±30ppm
Frequency Tolerance		±25ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		32 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-320-12-33-AGN-TR
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 478

Can ship immediately.
