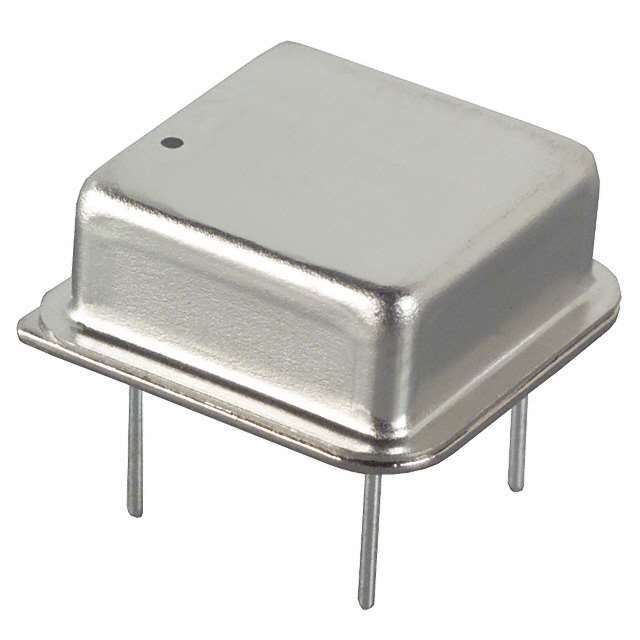

ECS-2200B-049

ECS-2200B-049

Part Number	ECS-2200B-049
Manufacturer	ECS Inc. International
Other Part Numbers	XC260-ND OECS-2200B-049 ECS2200B049 XC260
Description	XTAL OSC XO 4.9152MHZ HCMOS TTL
Detailed Description	4.9152 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)
Manufacturer Standard Lead Time	33 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		ECS Inc. International
Series		ECS-2200
Packaging		Bulk
Part Status		Active
Package / Case		8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension		0.520" L x 0.520" W (13.20mm x 13.20mm)
Mounting Type		Through Hole
Output		HCMOS, TTL
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		0°C ~ 70°C
Frequency Stability		±50ppm
Voltage - Supply		5V
Current - Supply (Max)		25mA
Height - Seated (Max)		0.213" (5.40mm)
Frequency		4.9152 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-2200B-049
Datasheets		ECS Half Size Series Bottom
Datasheets		ECS Half Size Series Side
Datasheets		ECS Half Size Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

In Stock: 655

Can ship immediately.
