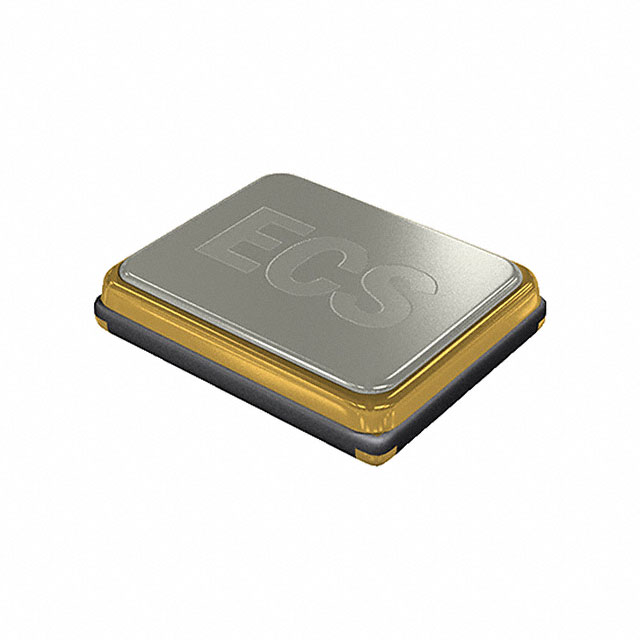

ECS-120-20-33-TR3

ECS-120-20-33-TR3

Part Number	ECS-120-20-33-TR3
Manufacturer	ECS Inc. International
Other Part Numbers	50-ECS-120-20-33-TR3TR-ND 50-ECS-120-20-33-TR3CT-ND 50-ECS-120-20-33-TR3DKR-ND 50-ECS-120-20-33-TR3TR 50-ECS-120-20-33-TR3DKR 50-ECS-120-20-33-TR3CT
Description	CRYSTAL 12.0000MHZ 20PF SMD
Detailed Description	12 MHz ±50ppm Crystal 20pF 100 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		ECX-32
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		20pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±50ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		12 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-120-20-33-TR3
Datasheets		Crystal Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5353

Can ship immediately.
