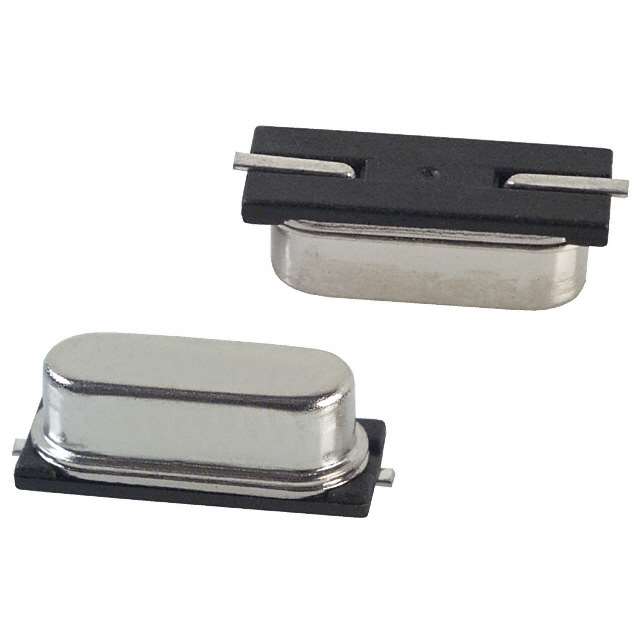

ECS-102.45-16-5PX-TR

ECS-102.45-16-5PX-TR

Part Number	ECS-102.45-16-5PX-TR
Manufacturer	ECS Inc. International
Other Part Numbers	XC1004TR-ND XC1004CT-ND XC1004DKR-ND ECS10245165PXTR XC1004DKR XC1004TR XC1004CT
Description	CRYSTAL 10.2450MHZ 16PF SMD
Detailed Description	10.245 MHz ±30ppm Crystal 16pF 50 Ohms HC-49/US
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		ECS Inc. International
Series		CSM-7X
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		16pF
Size / Dimension		0.449" L x 0.189" W (11.40mm x 4.80mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.169" (4.30mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		10.245 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ECS-102.45-16-5PX-TR
Datasheets		Crystal Part Numbering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
